1810900000 - Weidmüller

Description: Printed circuit board terminals, 5.08 mm, Number of poles: 7, 90°, Solder pin length: 3.5 mm, tinned, black, Clamping yoke connection, Clamping range, max. [rated connection]: 1.5 mm², Box

Download 1810900000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1810900000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

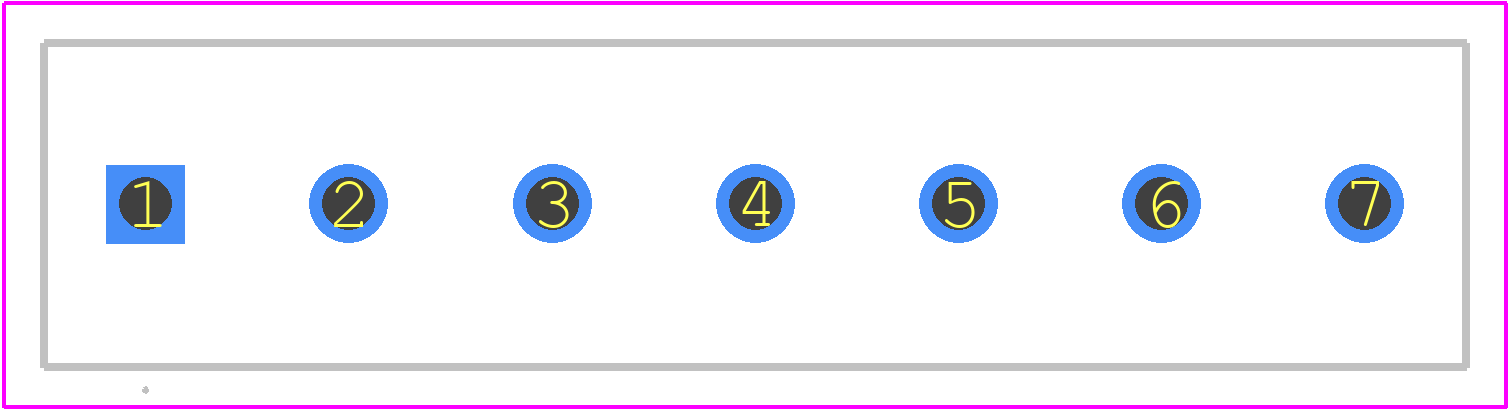

1810900000 - Weidmüller PCB footprint - Other - Other - 1810900000-2
click to zoom
3D Models
1810900000 - Weidmüller - 3D model - Other - 1810900000-2
click to zoom

1810900000 Details

  • Manufacturer Part Number:

    1810900000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    0

  • Additional Feature:

    UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    7

  • Rated Current:

    20 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    14 AWG

1810900000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1810900000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1810900000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals on the 1810900000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 1810900000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1810900000 has an IP20 rating, providing protection against solid objects larger than 12.5 mm and no protection against water.
