1811520000 - Weidmüller

Description: PCB terminal, 320 V, 24 A, Pitch in mm: 5.00, 2.5 mm², Number of poles: 3, Tension clamp connection with actuator, THT solder connection, 135°, Box

Download 1811520000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1811520000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

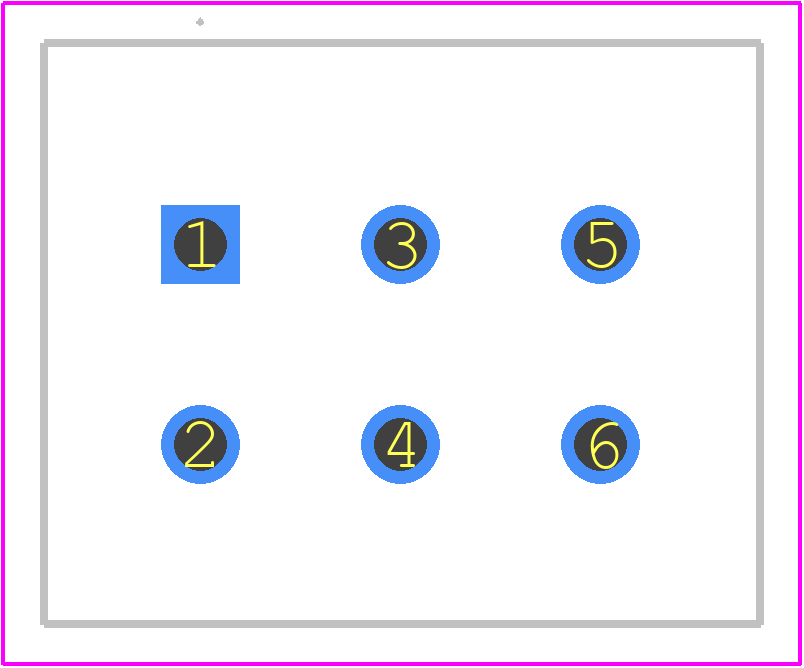

1811520000 - Weidmüller PCB footprint - Other - Other - 1811520000
click to zoom
3D Models
1811520000 - Weidmüller - 3D model - Other - 1811520000
click to zoom

1811520000 Details

  • Manufacturer Part Number:

    1811520000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    24 A

  • Rated Voltage:

    630 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    14 AWG

1811520000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1811520000 is -40°C to 85°C, according to Weidmüller's documentation.
  • Yes, the 1811520000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals on the 1811520000 is 0.5 Nm to 1.2 Nm, depending on the wire size and application.
  • The 1811520000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1811520000 has an IP20 rating, providing protection against solid objects larger than 12.5 mm and no protection against water.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1811520000 Overview

Use the download button to access the 1811520000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18115, or try a keyword search, such as Terminals and Terminal Blocks
