Part Image

1822817 - Phoenix Contact

Description: PCB terminal block, Nominal current: 13.5 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 8, Connection method: Spring-cage connection, Mounting: SMD/THT/THR, Conductor/PCB connection direction: 0 °, Color: black

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

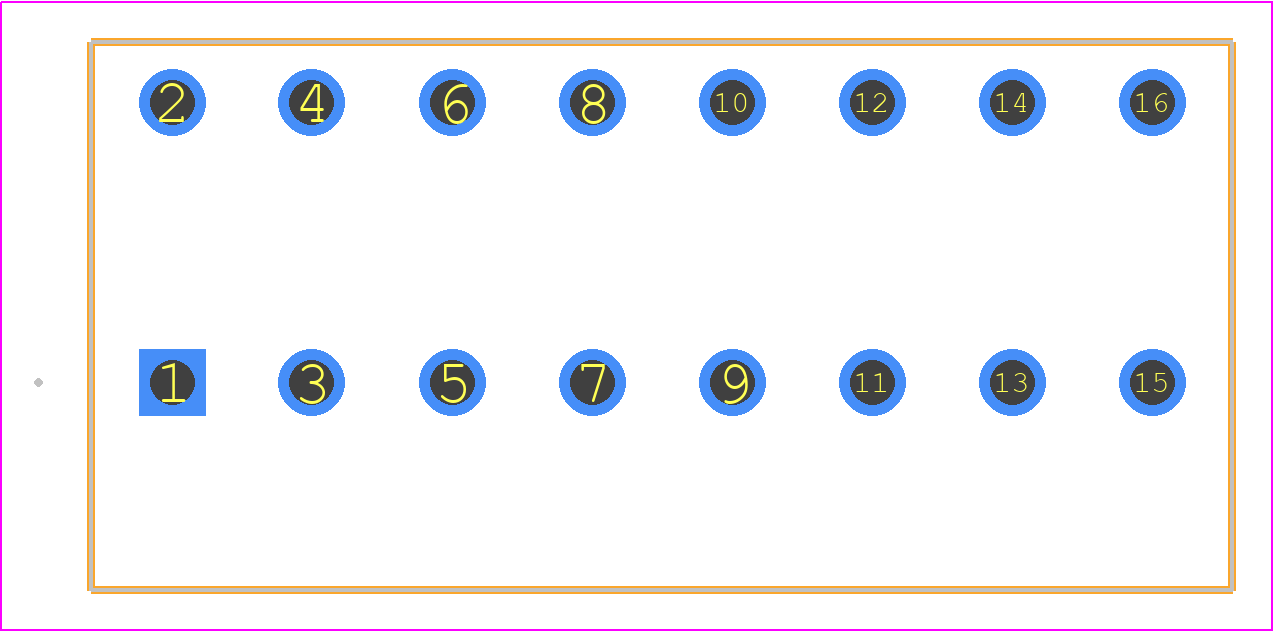

1822817 - Phoenix Contact PCB footprint - Other - Other - 1822817-2
click to zoom

3D Models

1822817 - Phoenix Contact  - 3D model - Other - 1822817-2
click to zoom

Risk Rank

1822817 — Phoenix Contact
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →
