Part Image

1823670 - Phoenix Contact

Description: SPT-THR 1,5/ 6-H-3,5 P20 R44 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: SPT 1,5/..-H-THR, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: THR soldering / wave soldering, conductor/PCB connection direction: 0 °, color: black, Pin layout: Linear pinning, Solder pin [P]: 2 mm, number of solder pins per potentia

Download 1823670 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

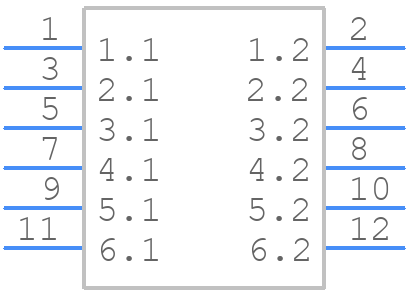

Symbol
1823670 - Phoenix Contact - PCB symbol
click to zoom

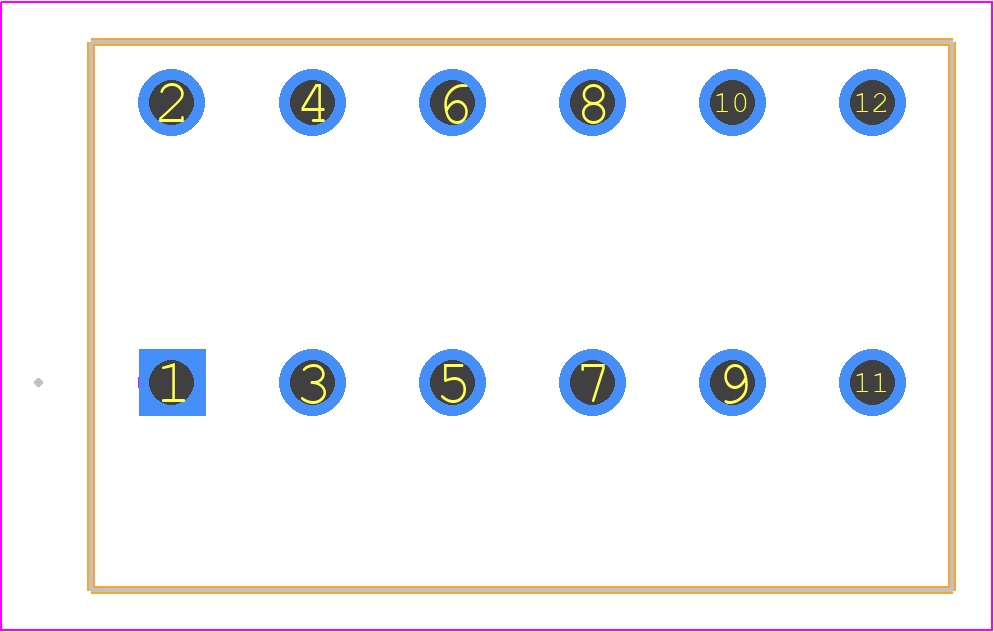

PCB Footprints
1823670 - Phoenix Contact PCB footprint - Other - Other - 1823670
click to zoom
3D Models
1823670 - Phoenix Contact - 3D model - Other - 1823670
click to zoom

1823670 Details

  • Manufacturer Part Number:

    1823670

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    13.5 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CUL;EAC;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1823670 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1823670 is -40°C to 125°C.
  • Yes, the 1823670 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1823670 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The maximum wire size that can be connected to the 1823670 is 2.5 mm² (AWG 14).
  • Yes, the 1823670 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1823670 Overview

Use the download button to access the 1823670 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18236, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
