Part Image

1824129 - Phoenix Contact

Description: SPT-SMD 1,5/ 6-V-3,5 R44 - Printed circuit board terminal, nominal current: 17.5 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 6, number of rows: 1, number of positions per row: 6, product range: SPT 1,5/..-V-SMD, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: SMD soldering, conductor/PCB connection direction: 90 °, color: black, Pin layout: Linear pad geometry, number of solder pins per potential: 2, type of packaging: 44 mm wide t

Download 1824129 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

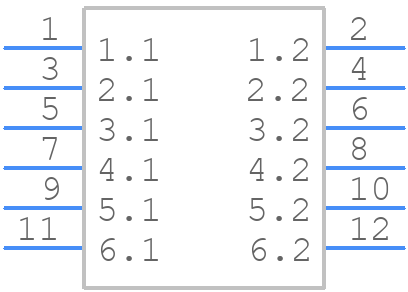

Symbol
1824129 - Phoenix Contact - PCB symbol
click to zoom

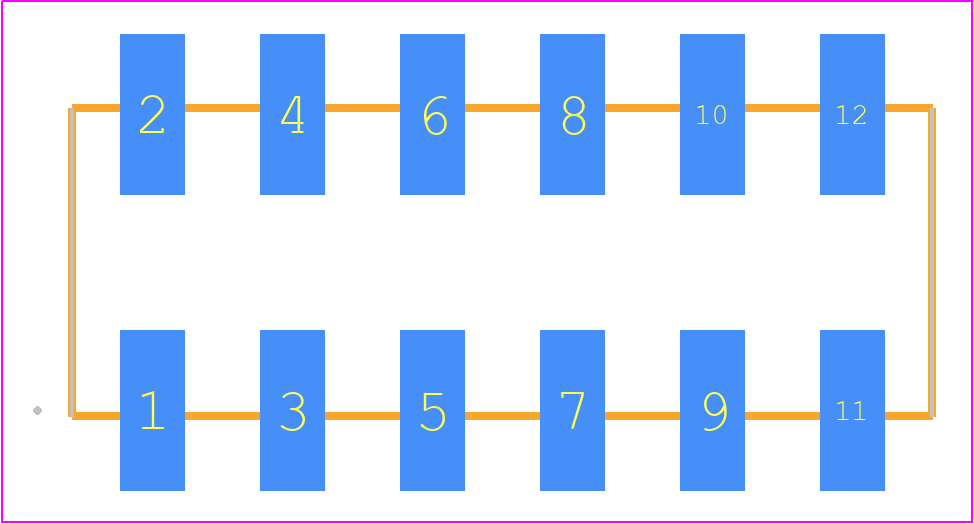

PCB Footprints
1824129 - Phoenix Contact PCB footprint - Other - Other - 1824129
click to zoom
3D Models
1824129 - Phoenix Contact - 3D model - Other - 1824129
click to zoom

1824129 Details

  • Manufacturer Part Number:

    1824129

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    13.5 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CUL;EAC;UL;VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1824129 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1824129 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific high-vibration applications.
  • The 1824129 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95%. However, it's recommended to consult the datasheet and perform additional testing for specific environmental conditions.
  • While the 1824129 connector is optimized for AWG 24-18 wires, it can be used with other wire sizes. However, it's essential to consult the datasheet and perform additional testing to ensure reliable connections and to avoid damage to the connector or wires.
  • The 1824129 connector meets various safety standards, including UL 1977 and IEC 61984. It's essential to consult the datasheet and relevant safety standards to ensure compliance with specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1824129 Overview

Use the download button to access the 1824129 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18241, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
