Description:PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.81, 1.5 mm², Number of poles: 5, PUSH IN with push button, THT/THR solder connection, 90°, Tube
The operating temperature range of the 1824650000 is -40°C to 85°C, as specified by Weidmüller.
Yes, the 1824650000 is designed to be compatible with various industrial automation protocols, including PROFINET and EtherNet/IP, making it suitable for use in industrial control systems.
The maximum cable length supported by the 1824650000 depends on the specific application and cable type, but generally, it can support cable lengths up to 100 meters.
The 1824650000 has built-in surge protection, which provides a certain level of protection against electrical surges and spikes. However, depending on the specific application and environment, additional external protection may still be necessary.
The 1824650000 is not designed for use in hazardous locations, such as explosive atmospheres, and does not have the necessary certifications (e.g., ATEX, IECEx) for such use. It is intended for use in general industrial environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1824650000 Overview

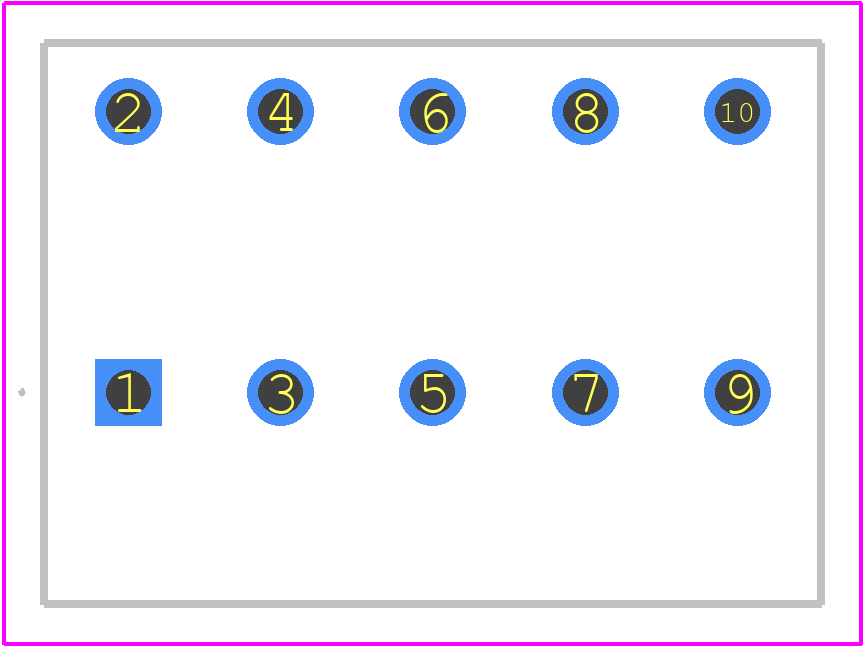

Use the download button to access the 1824650000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18246,
or try a keyword search, such as Terminals and Terminal Blocks
