1824760000 - Weidmüller

Description: PCB terminal, 320 V, 17.5 A, Pitch in mm: 5.00, 1.5 mm², Number of poles: 4, PUSH IN with push button, THT/THR solder connection, 90°, Tube

Download 1824760000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1824760000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

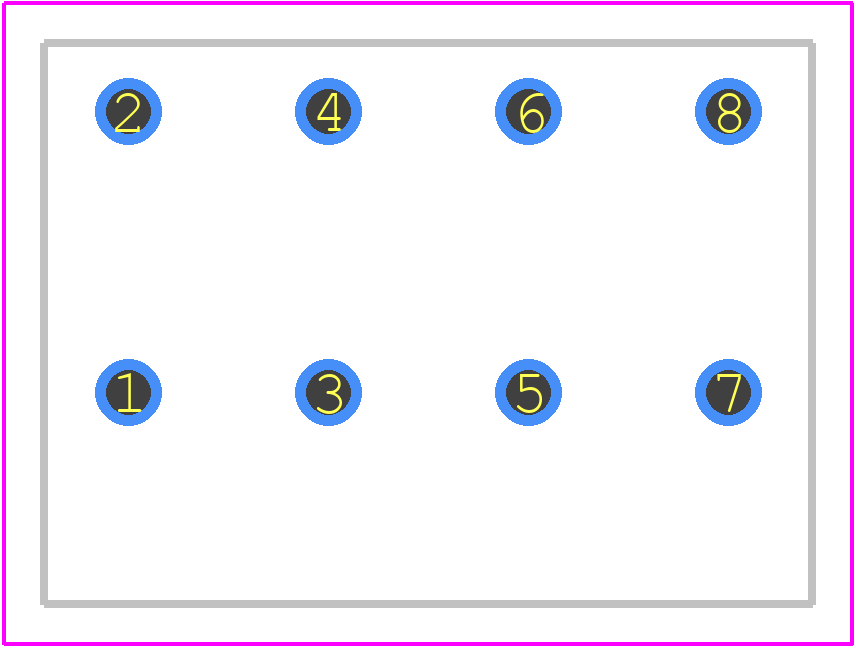

1824760000 - Weidmüller PCB footprint - Other - Other - 1824760000-2
click to zoom
3D Models
1824760000 - Weidmüller - 3D model - Other - 1824760000-2
click to zoom

1824760000 Details

  • Manufacturer Part Number:

    1824760000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1824760000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1824760000 connector is -40°C to 125°C.
  • Yes, the 1824760000 connector is suitable for outdoor use, but it's recommended to use a suitable sealant or gasket to ensure IP67 rating.
  • Yes, the 1824760000 connector is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and securing the connector.
  • The maximum current rating for the 1824760000 connector is 10A per contact, but it's recommended to derate the current based on the ambient temperature and other environmental factors.
  • Yes, the 1824760000 connector is designed to be compatible with other Weidmüller products, including their range of connectors, cables, and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1824760000 Overview

Use the download button to access the 1824760000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18247, or try a keyword search, such as Terminals and Terminal Blocks
