1825145 - Phoenix Contact

Description: IC 2,5/ 4-GF-5,08 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: IC 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern a

Download 1825145 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

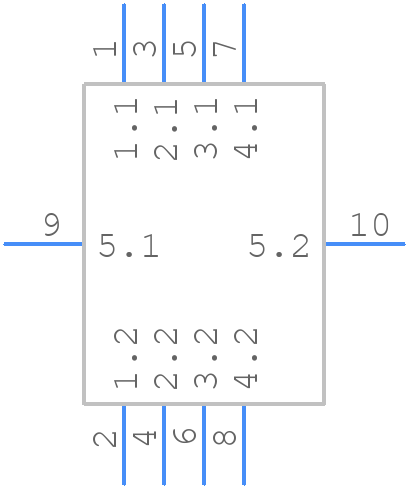

1825145 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

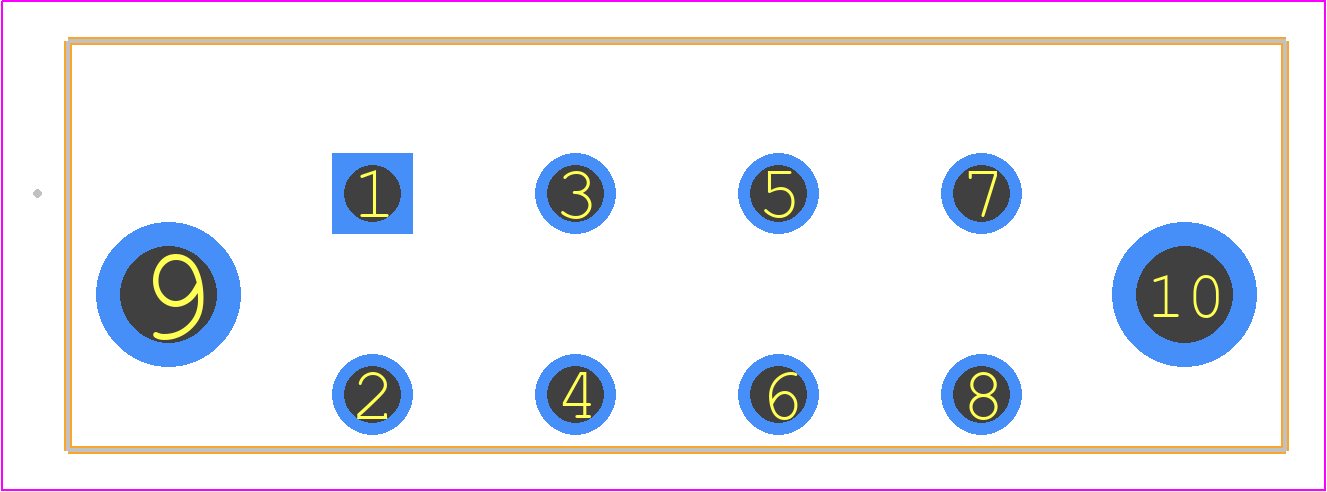

1825145 - Phoenix Contact PCB footprint - Other - Other - 1825145
click to zoom
3D Models
1825145 - Phoenix Contact - 3D model - Other - 1825145
click to zoom

1825145 Details

  • Manufacturer Part Number:

    1825145

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    12 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1825145 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1825145 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1825145 connector has a IP20 rating, which means it's protected against solid objects > 12mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
  • The 1825145 connector is rated for operating temperatures between -40°C and 105°C. For applications exceeding 105°C, consider using a high-temperature connector or consulting with Phoenix Contact's technical support.
  • The 1825145 connector is designed for use with AWG 24-20 wires. For specific wire size and type recommendations, consult the Phoenix Contact datasheet or contact their technical support.
