1825670000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 5, PUSH IN with actuator, THT/THR solder connection, 180°, Tube

Download 1825670000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1825670000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

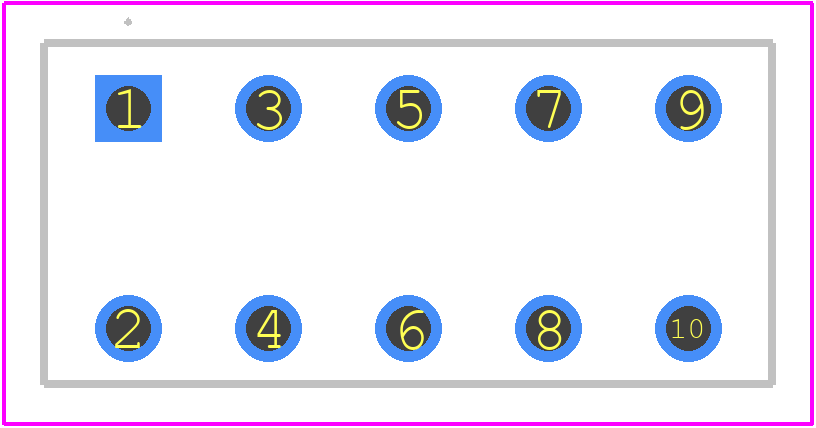

1825670000 - Weidmüller PCB footprint - Other - Other - 1825670000-2
click to zoom
3D Models
1825670000 - Weidmüller - 3D model - Other - 1825670000-2
click to zoom

1825670000 Details

  • Manufacturer Part Number:

    1825670000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1825670000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1825670000 is -40°C to 85°C.
  • Yes, the 1825670000 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating of the 1825670000 is 10A per pin.
  • No, the 1825670000 is not suitable for outdoor use due to its IP20 rating, which provides limited protection against solid objects and no protection against water.
  • Yes, the 1825670000 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
