The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the 1825740000 is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's recommended to perform additional testing to ensure the connector meets the specific vibration requirements of your application.
The 1825740000 has a protection rating of IP20, which means it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider using a connector with a higher IP rating, such as IP67 or IP69K.
While the datasheet specifies a specific wire gauge, it's possible to use a different gauge wire. However, you'll need to ensure the wire meets the connector's minimum and maximum wire size specifications, and that the wire's insulation and conductor materials are compatible with the connector's materials.
The 1825740000 meets various safety certifications, including UL and IEC. To ensure the connector meets the required safety certifications for your application, review the datasheet and certification documents, and consult with a qualified engineer or safety expert if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1825740000 Overview

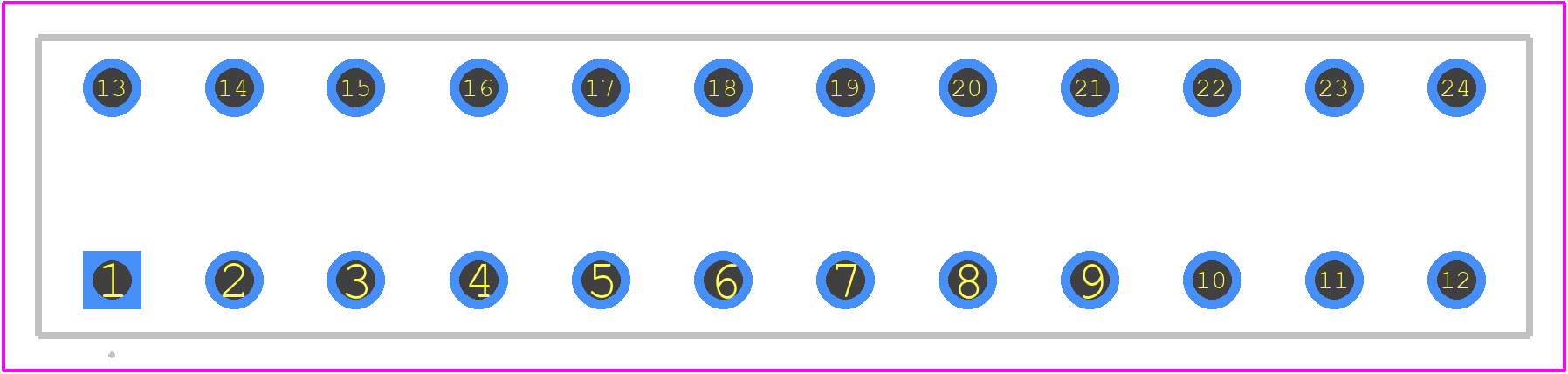

Use the download button to access the 1825740000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18257,
or try a keyword search, such as Terminals and Terminal Blocks
