1827936 - Phoenix Contact

Description: MC 1,5/ 9-GF-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 9, number of rows: 1, number of positions: 9, number of connections: 9, product range: MC 1,5/..-GF, pitch: 3.81 mm, screw head form: L Slotted, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, P

Download 1827936 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1827936 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

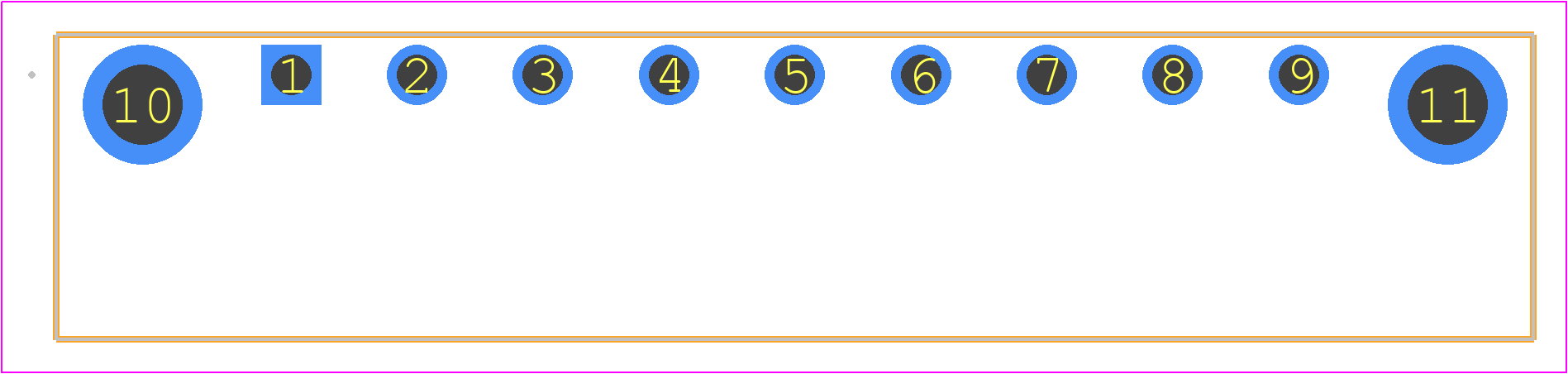

1827936 - Phoenix Contact PCB footprint - Other - Other - 1827936
click to zoom
3D Models
1827936 - Phoenix Contact - 3D model - Other - 1827936
click to zoom

1827936 Details

  • Manufacturer Part Number:

    1827936

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, PBT

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CSA; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1827936 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, but it's always best to consult the specific panel manufacturer's recommendations.
  • Yes, the 1827936 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's essential to ensure proper mounting and secure wiring to prevent damage.
  • The 1827936 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's crucial to ensure proper sealing and protection of the connector and wiring.
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to stick to the specified wire gauge range (0.5 mm² to 2.5 mm²) for optimal results.
  • To ensure proper earthing and grounding, make sure to connect the connector's earth pin to a suitable grounding point on the panel or device. Consult the device's documentation and relevant safety standards for specific guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1827936 Overview

Use the download button to access the 1827936 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18279, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
