1828935 - Phoenix Contact

Description: GICV 2,5/ 4-G-7,62 - PCB headers, nominal cross section: 2.5 mm<sup>2</sup>, color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Sn, contact connection type: Socket, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: GICV 2,5/..-G, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.6 mm, number of solder pins per potential: 2, plug-in system: COMBICON MSTB 2,5, Pin connector pattern

Download 1828935 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1828935 - Phoenix Contact - PCB symbol
click to zoom

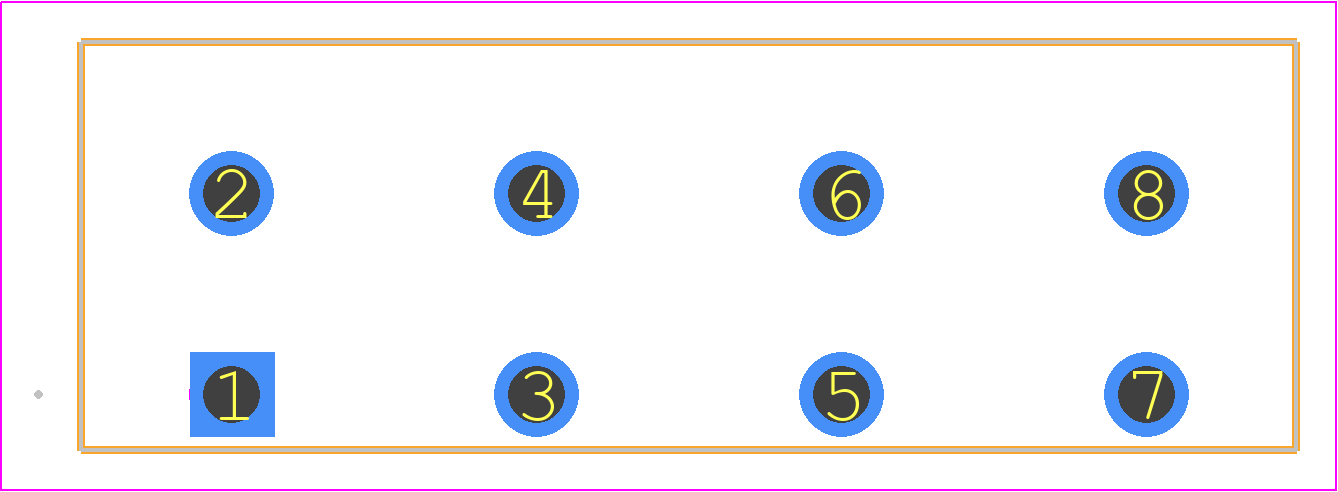

PCB Footprints
1828935 - Phoenix Contact PCB footprint - Other - Other - 1828935
click to zoom
3D Models
1828935 - Phoenix Contact - 3D model - Other - 1828935
click to zoom

1828935 Details

  • Manufacturer Part Number:

    1828935

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA; 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    12 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1828935 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1828935 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific applications.
  • The connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
  • The 1828935 connector is rated for up to 12 A per pin. For higher current applications, consider using a connector with a higher current rating or consulting with a Phoenix Contact representative for custom solutions.
  • Yes, Phoenix Contact recommends following their PCB layout guidelines, which include keeping the PCB thickness between 1.5 mm and 2.5 mm, and maintaining a minimum clearance of 1.5 mm around the connector.
