1830169 - Phoenix Contact

Description: MCD 1,5/ 8-GF-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: MCD 1,5/..-GF, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern ali

Download 1830169 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1830169 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

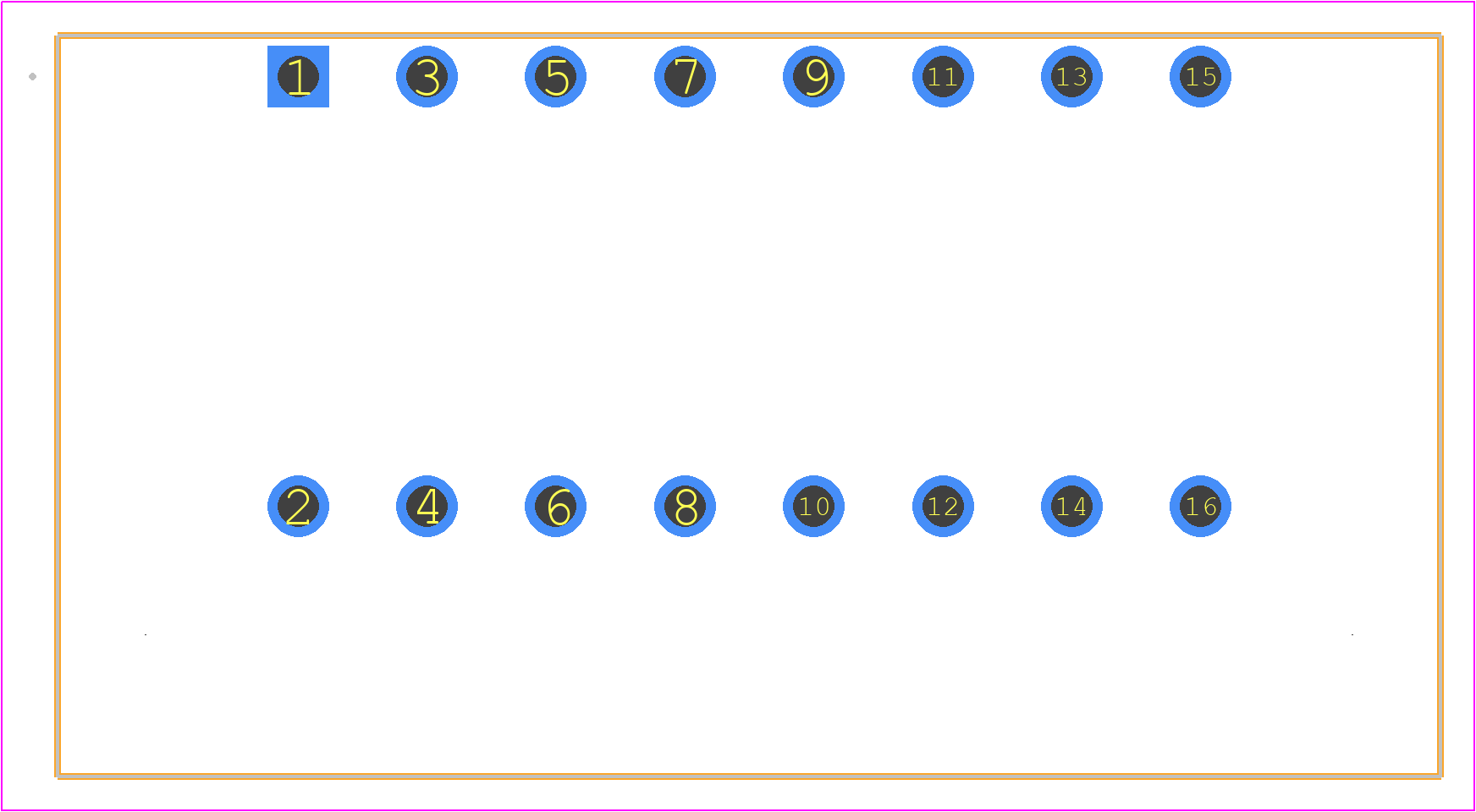

1830169 - Phoenix Contact PCB footprint - Other - Other - 1830169
click to zoom
3D Models
1830169 - Phoenix Contact - 3D model - Other - 1830169
click to zoom

1830169 Details

  • Manufacturer Part Number:

    1830169

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1830169 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting and to avoid damage to the PCB or connector.
  • Yes, the 1830169 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to the PCB to maintain reliability in high-vibration environments.
  • The 1830169 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humid environments. However, it's essential to consult the specific application requirements and ensure proper sealing and protection to maintain reliability.
  • Yes, the 1830169 connector is designed to be compatible with other Phoenix Contact products and accessories, such as cables, adapters, and connectors. Consult the Phoenix Contact catalog or website for compatible products and configurations.
  • The maximum current rating for the 1830169 connector is 12 A per contact. However, it's essential to consult the specific application requirements and ensure proper wire sizing and insulation to maintain reliability and safety.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1830169 Overview

Use the download button to access the 1830169 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18301, or try a keyword search, such as Terminals and Terminal Blocks
