1830457 - Phoenix Contact

1830457 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector to the PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and assembly guidelines for optimal results.
• Can I use this connector in high-vibration applications?
  Yes, the 1830457 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 2. However, it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
• Is the connector suitable for use in humid or wet environments?
  The 1830457 connector has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not against water or moisture. For humid or wet environments, consider using a connector with a higher IP rating or applying additional sealing measures.
• Can I use this connector with wire sizes other than the recommended AWG 20-24?
  While the connector is optimized for AWG 20-24 wires, you can use other wire sizes with caution. However, ensure the wire insulation diameter and stripping length are compatible with the connector's specifications to avoid damage or poor connections.

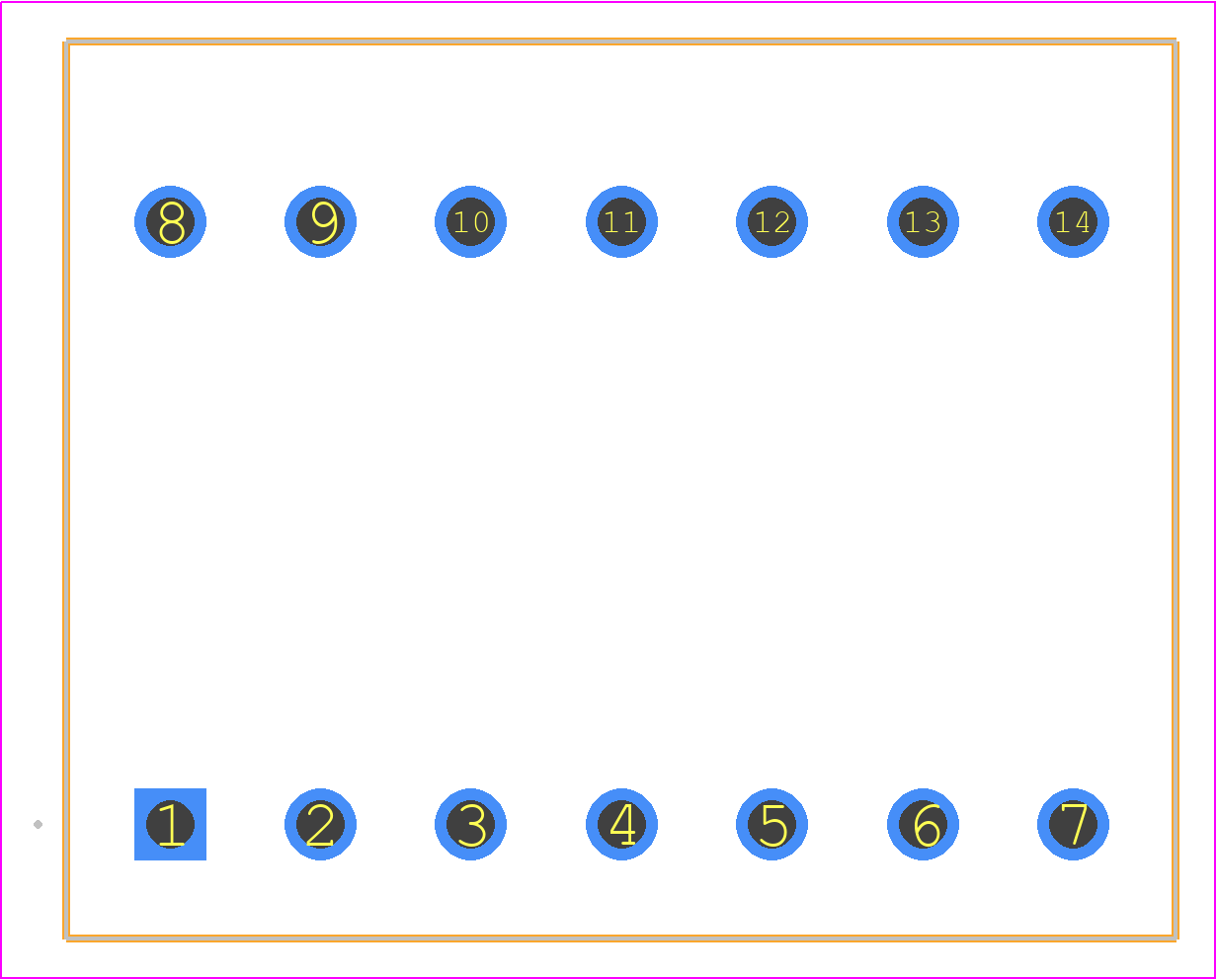

• Are there any specific PCB layout considerations for this connector?
  Yes, it's essential to follow Phoenix Contact's recommended PCB layout guidelines, including keeping the connector's footprint clear of other components and ensuring sufficient clearance for the screw heads.
