1841271 - Phoenix Contact

Description: MC 1,5/20-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 20, number of rows: 1, number of positions: 20, number of connections: 20, product range: MC 1,5/..-G, pitch: 3.81 mm, screw head form: L Slotted, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5,

Download 1841271 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1841271 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

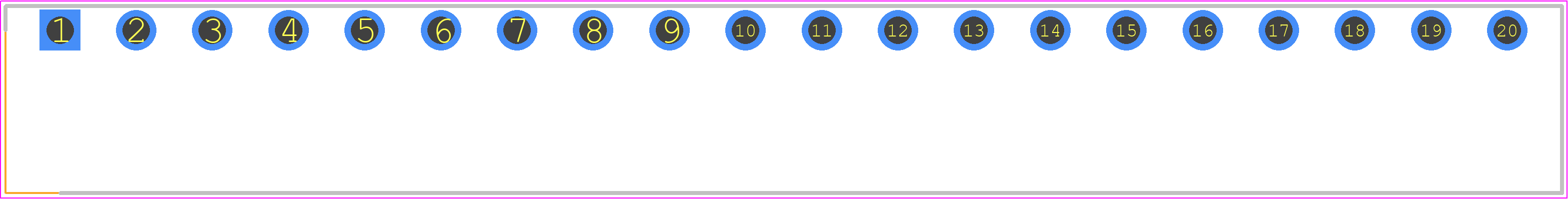

1841271 - Phoenix Contact PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 1841271
click to zoom
3D Models
1841271 - Phoenix Contact - 3D model - Header, Shrouded - Straight PTH Box - 1841271
click to zoom

1841271 Details

  • Manufacturer Part Number:

    1841271

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
