1841539 - Phoenix Contact

Description: SPTD 1,5/ 6-H-3,5 - Printed circuit board terminal, nominal current: 10 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 12, number of rows: 2, number of positions per row: 6, product range: SPTD 1,5, pitch: 3.5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in

Download 1841539 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

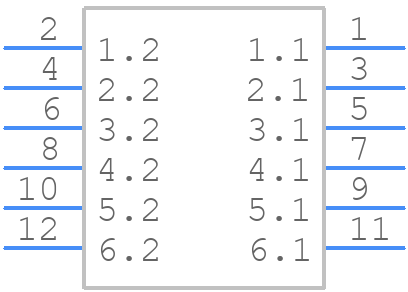

1841539 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

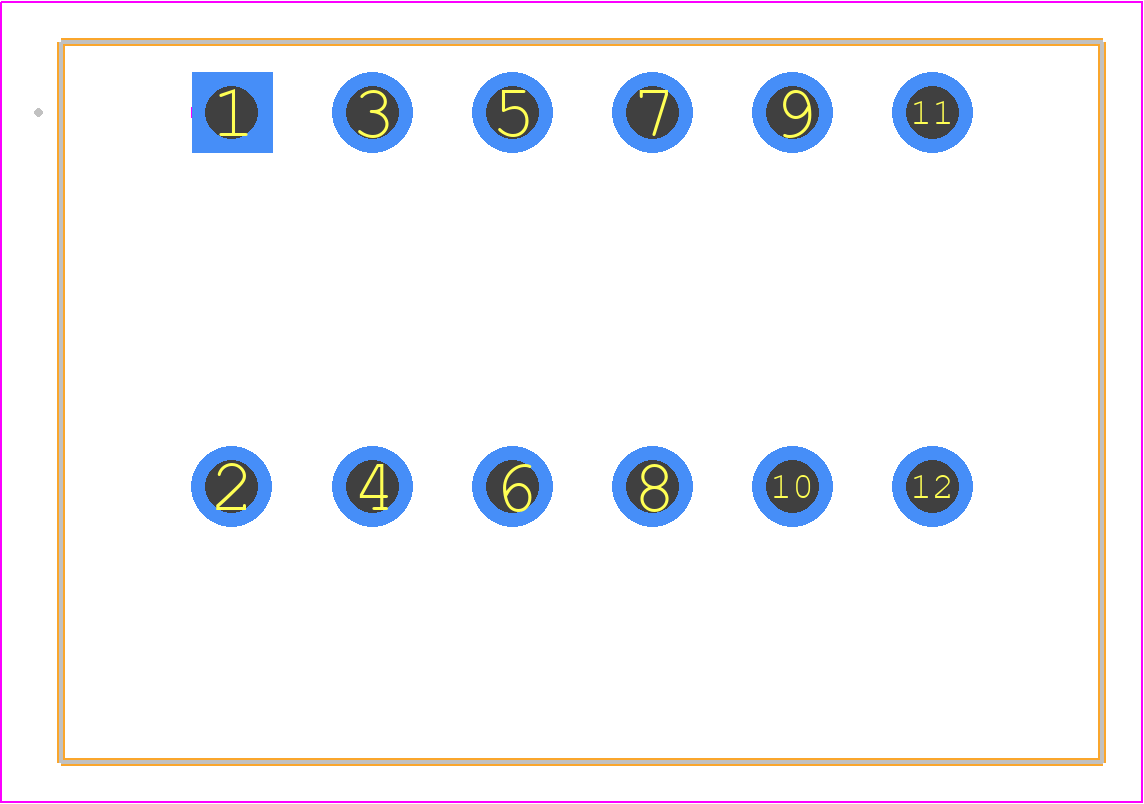

1841539 - Phoenix Contact PCB footprint - Other - Other - 1841539
click to zoom
3D Models
1841539 - Phoenix Contact - 3D model - Other - 1841539
click to zoom

1841539 Details

  • Manufacturer Part Number:

    1841539

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.55

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    10 A

  • Rated Voltage:

    200 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1841539 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1841539 is -40°C to 125°C, making it suitable for use in a wide range of industrial and automation applications.
  • Yes, the 1841539 is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals, allowing for easy integration into existing systems.
  • The maximum current rating for the 1841539 is 12 A, making it suitable for use in applications where high currents are required.
  • Yes, the 1841539 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, ensuring that it meets the necessary environmental and safety standards.
  • The 1841539 is typically used in industrial automation, process control, and power distribution applications, including use in control cabinets, machinery, and equipment.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1841539 Overview

Use the download button to access the 1841539 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18415, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
