1842010000 - Weidmüller

Description: PCB connector (board connection), 160 V, 15 A, Pitch in mm: 3.50, Number of poles: 18, THT/THR solder connection, Box

Download 1842010000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

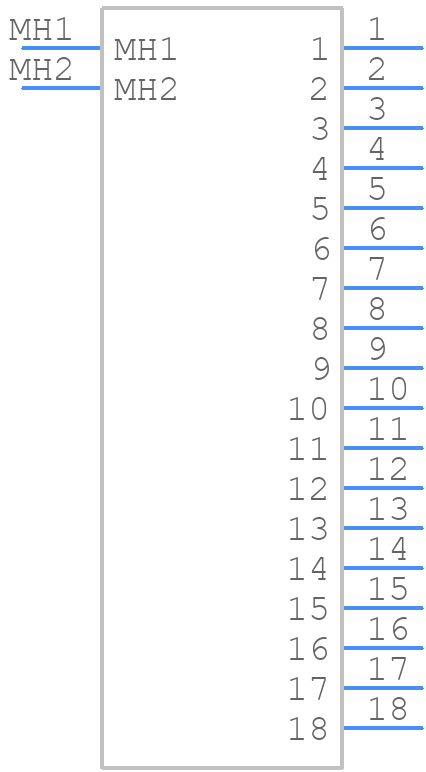

1842010000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

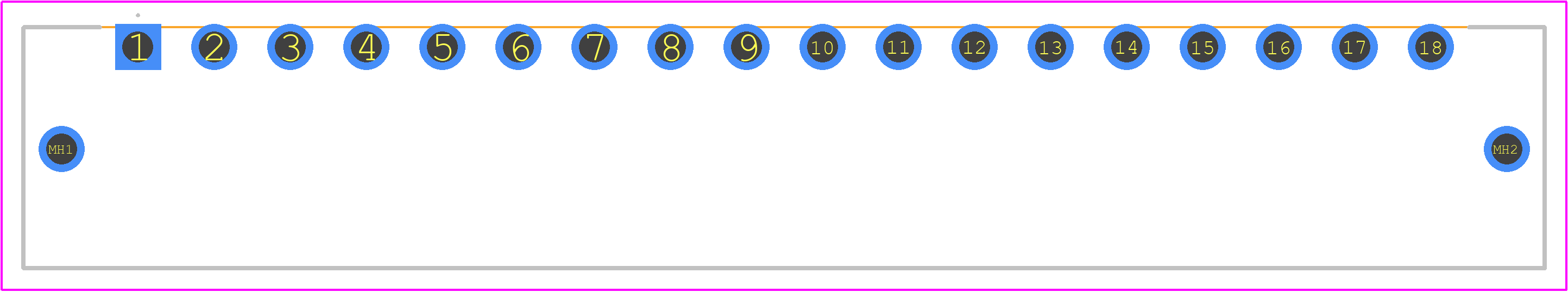

1842010000 - Weidmüller PCB footprint - Other - Other - 1842010000
click to zoom
3D Models
1842010000 - Weidmüller - 3D model - Other - 1842010000
click to zoom

1842010000 Details

  • Manufacturer Part Number:

    1842010000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    6.77

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    18

  • Rated Current:

    15 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1842010000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1842010000 is -40°C to 85°C.
  • Yes, the 1842010000 is RoHS and REACH compliant, making it suitable for use in the European Union.
  • The maximum cable diameter that can be used with the 1842010000 is 12 mm.
  • No, the 1842010000 is not designed for use in hazardous locations and does not have any explosion-proof certifications.
  • The 1842010000 has an IP67 rating, providing protection against dust and water ingress.
