Technical Content
Part Image

1843787 - Phoenix Contact

Description: MCV 1,5/20-G-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 20, number of rows: 1, number of positions: 20, number of connections: 20, product range: MCV 1,5/..-G, pitch: 3.5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignm

Download 1843787 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1843787 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

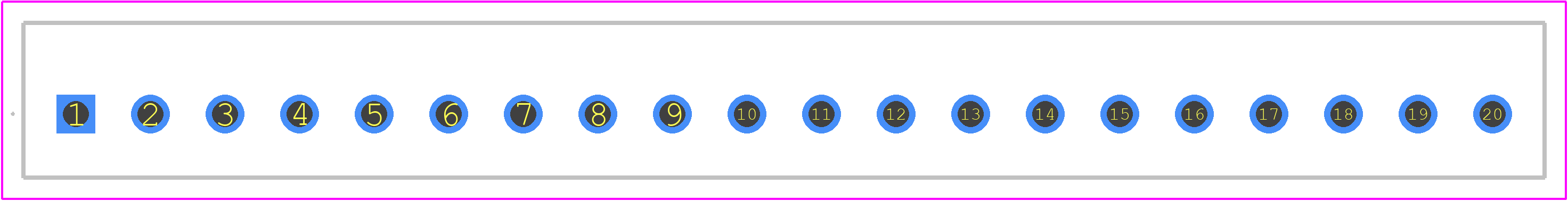

1843787 - Phoenix Contact PCB footprint - Other - Other - 1843787-2
click to zoom
3D Models
1843787 - Phoenix Contact - 3D model - Other - 1843787-2
click to zoom

1843787 Details

  • Manufacturer Part Number:

    1843787

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    5.78

  • Additional Feature:

    PBT, UL 94V-0

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL; VDE; CSA

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1843787 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • Yes, the 1843787 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1843787 has a protection rating of IP67, which means it is protected against dust and temporary immersion in water, making it suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • The 1843787 can operate in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications.
  • Yes, the 1843787 is designed to accommodate stranded wires with a wire size range of 0.5 mm² to 2.5 mm². However, it's essential to follow the recommended wire preparation and termination procedures to ensure reliable connections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1843787 Overview

Use the download button to access the 1843787 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18437, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
