1844304 - Phoenix Contact

Description: MC 1,5/11-G-3,5 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 11, number of rows: 1, number of positions: 11, number of connections: 11, product range: MC 1,5/..-G, pitch: 3.5 mm, screw head form: L Slotted, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pi

Download 1844304 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844304 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

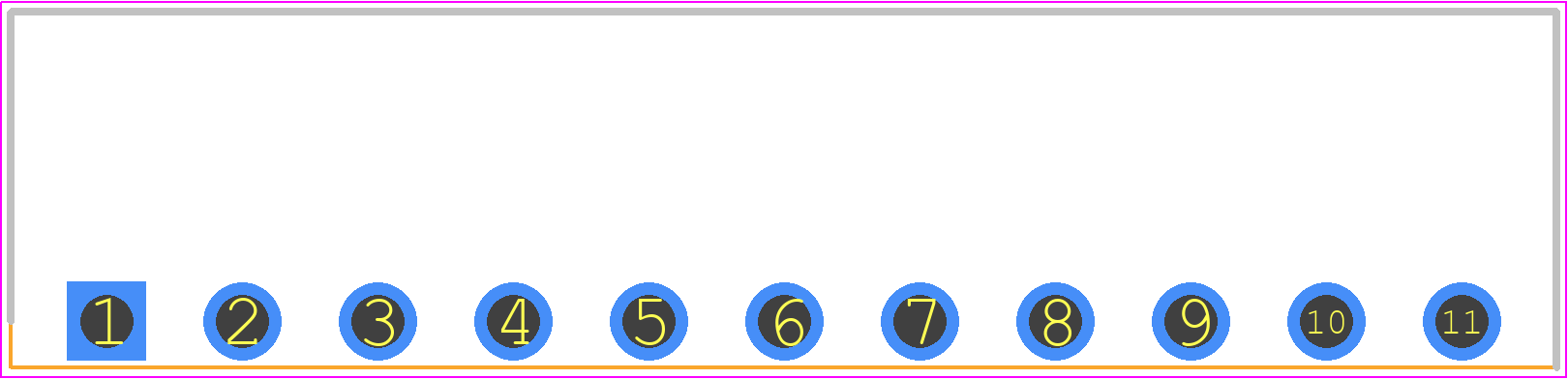

1844304 - Phoenix Contact PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 1844304
click to zoom
3D Models
1844304 - Phoenix Contact - 3D model - Header, Shrouded - Right Angle PTH Box - 1844304
click to zoom

1844304 Details

  • Manufacturer Part Number:

    1844304

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, UL 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    11

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844304 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 1844304 connector is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1844304 connector is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and screwing to prevent loosening or damage.
  • The 1844304 connector has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's crucial to follow proper installation and sealing guidelines to maintain the IP rating.
  • Yes, the 1844304 connector is designed to be compatible with other Phoenix Contact products, such as their terminal blocks and connectors. However, it's essential to verify compatibility before integrating the products.
  • The 1844304 connector has an operating temperature range of -40°C to 125°C, making it suitable for a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1844304 Overview

Use the download button to access the 1844304 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18443, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
