1844730 - Phoenix Contact

Description: DMC 0,5/ 3-G1-2,54 P20THR R24 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 6, number of rows: 2, number of positions: 3, number of connections: 6, product range: DMC 0,5/..-G1-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC 0

Download 1844730 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844730 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

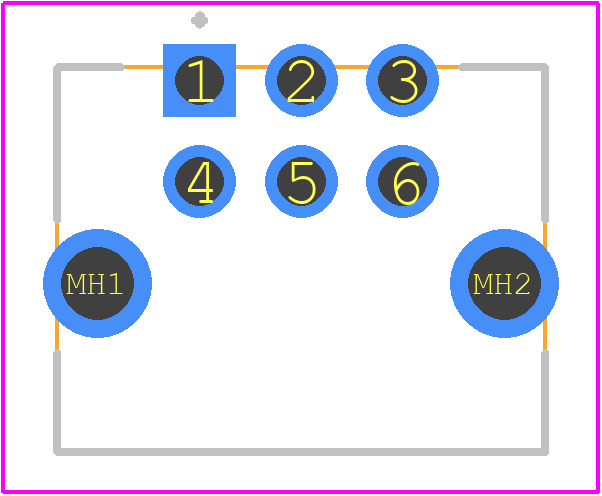

1844730 - Phoenix Contact PCB footprint - Other - Other - 1844730_1
click to zoom
3D Models
1844730 - Phoenix Contact - 3D model - Other - 1844730_1
click to zoom

1844730 Details

  • Manufacturer Part Number:

    1844730

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844730 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1844730 is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to consult with Phoenix Contact or a qualified engineer to ensure the connector meets the specific requirements of your application.
  • Yes, the 1844730 is UL recognized and meets the requirements of UL 1977 and UL 2238.
  • The maximum operating temperature of the 1844730 is 125°C (257°F), with a maximum storage temperature of 150°C (302°F).
  • The 1844730 has a IP20 rating, which means it's protected against solid objects larger than 12 mm, but not protected against water or moisture. If you need a connector for a humid or wet environment, consider using a connector with a higher IP rating, such as IP67 or IP69K.
