1844785 - Phoenix Contact

Description: DMC 0,5/ 8-G1-2,54 P20THR R44 - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Au, contact connection type: Pin, number of potentials: 16, number of rows: 2, number of positions: 8, number of connections: 16, product range: DMC 0,5/..-G1-THR, pitch: 2.54 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON DFMC

Download 1844785 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1844785 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

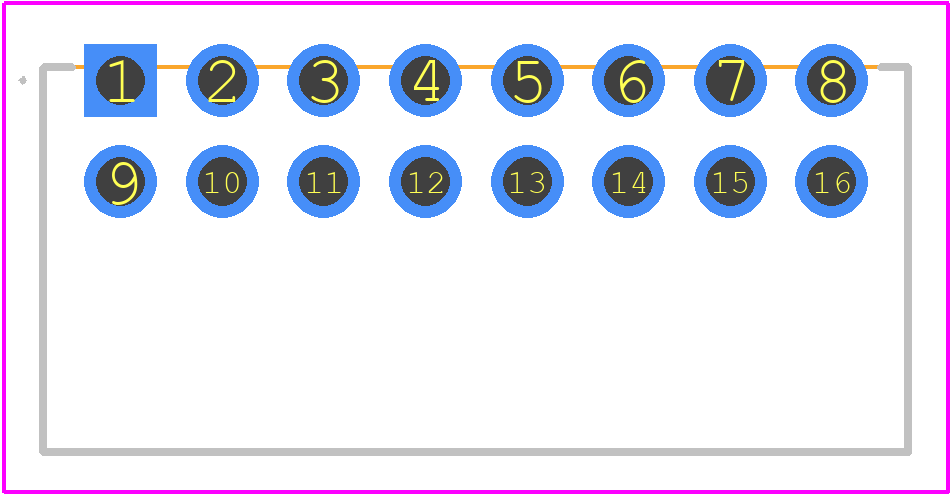

1844785 - Phoenix Contact PCB footprint - Other - Other - 1844785-1
click to zoom
3D Models
1844785 - Phoenix Contact - 3D model - Other - 1844785-1
click to zoom

1844785 Details

  • Manufacturer Part Number:

    1844785

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    8

  • Rated Current:

    6 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1844785 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and Phoenix Contact's application notes for precise guidance.
  • Yes, the 1844785 connector is designed to withstand vibrations and shocks according to IEC 61373 Category 2. However, it's crucial to ensure proper mounting and secure the connector to the PCB to maintain reliability.
  • To ensure reliable connections in high-temperature applications, make sure to follow Phoenix Contact's guidelines for temperature derating, and consider using a thermal interface material to reduce thermal resistance.
  • While it's technically possible to use a different wire gauge, it's not recommended as it may compromise the connector's performance and reliability. Stick to the recommended wire gauge specified in the datasheet to ensure optimal results.
  • The maximum current rating for the 1844785 connector is 12 A per contact. However, it's essential to consider the specific application, wire size, and insulation to ensure safe and reliable operation.
