1847699 - Phoenix Contact

Description: MCV 1,5/10-GF-5,08 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 10, number of rows: 1, number of positions: 10, number of connections: 10, product range: MCV 1,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern al

Download 1847699 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1847699 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

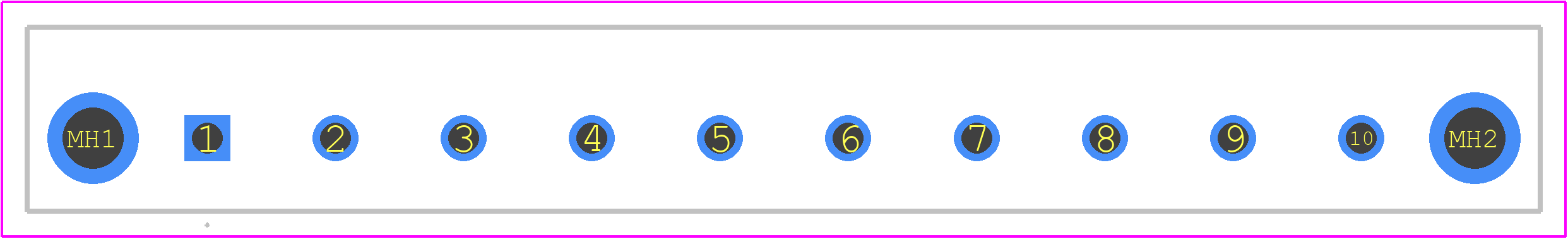

1847699 - Phoenix Contact PCB footprint - Other - Other - 1847699-2
click to zoom
3D Models
1847699 - Phoenix Contact - 3D model - Other - 1847699-2
click to zoom

1847699 Details

  • Manufacturer Part Number:

    1847699

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    PBT, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1847699 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1847699 is -40°C to 125°C, according to Phoenix Contact's documentation.
  • Yes, the 1847699 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the necessary EU directives for environmental sustainability.
  • The recommended torque for the screw terminals on the 1847699 is 0.5 Nm to 1.2 Nm, depending on the wire size and type. It's essential to follow the recommended torque to ensure reliable connections.
  • The 1847699 is not designed for use in hazardous locations, such as explosive atmospheres. If you need a product for hazardous locations, you should consider a different Phoenix Contact product that is specifically certified for such applications.
  • The maximum wire size that can be connected to the 1847699 is 2.5 mm² (AWG 14) for solid wires and 1.5 mm² (AWG 16) for stranded wires.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1847699 Overview

Use the download button to access the 1847699 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18476, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
