1847712 - Phoenix Contact

Description: MCV 1,5/12-GF-5,08 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: MCV 1,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern al

Download 1847712 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1847712 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

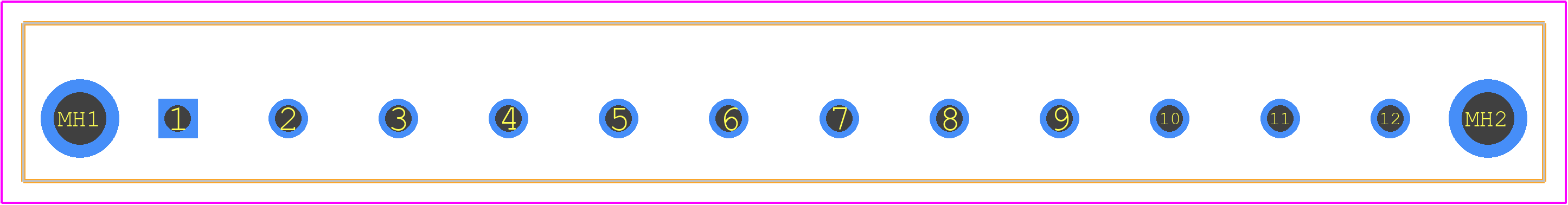

1847712 - Phoenix Contact PCB footprint - Other - Other - 1847712-2
click to zoom
3D Models
1847712 - Phoenix Contact - 3D model - Other - 1847712-2
click to zoom

1847712 Details

  • Manufacturer Part Number:

    1847712

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PBT, 94V-0

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    250 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1847712 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1847712 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • Yes, the 1847712 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The maximum operating temperature of the 1847712 connector is 125°C, according to the datasheet.
  • It is not recommended to use the 1847712 connector with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Copper or copper-alloy wires are recommended instead.
