1847738 - Phoenix Contact

Description: MCDV 1,5/ 3-G1-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 2, number of positions: 3, number of connections: 6, product range: MCDV 1,5/..-G1, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern ali

Download 1847738 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1847738 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

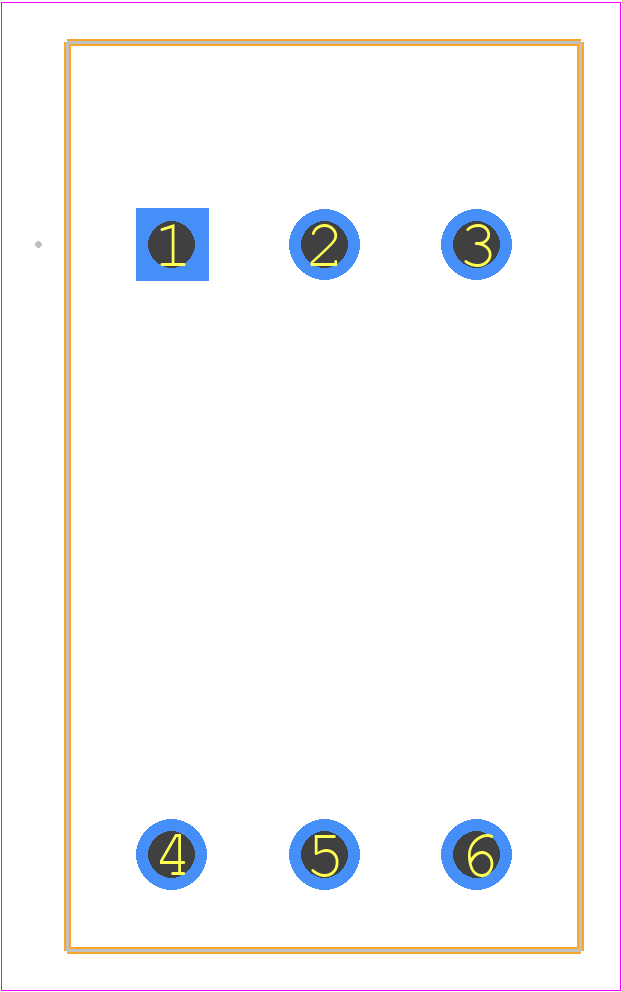

1847738 - Phoenix Contact PCB footprint - Other - Other - 1847738
click to zoom
3D Models
1847738 - Phoenix Contact - 3D model - Other - 1847738
click to zoom

1847738 Details

  • Manufacturer Part Number:

    1847738

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    2

  • Number of Ways:

    6

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CSA; CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1847738 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 1847738 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 61373 Cat. 1 Class B.
  • Yes, the 1847738 is suitable for outdoor use. It has a IP67 rating, which means it is protected against dust and water ingress.
  • The maximum operating temperature range for the 1847738 is -40°C to 125°C (-40°F to 257°F).
  • No, the 1847738 is designed for wire sizes up to 2.5 mm² (AWG 14). Using a larger wire size may compromise the connector's performance and reliability.
