Part Image

185534-2 - TE Connectivity

Description: Body Features: Connector & Keying Code 2 | Primary Product Color Blue | Configuration Features: Number of Positions 26 | Number of Sections 1 | Number of Rows 2 | Number of Signal Positions 26 | PCB Mount Orientation Horizontal | Contact Features: Mating Tab Thickness .025 INCH | Mating Tab Width .025 INCH | Mating Tab Thickness .63 MM | Contact Size .63mm | Contact Type Tab | Mating Tab Width .63 MM | Contact Mating Area Plating Material Tin | Dimensions: Connector Width 1.098 INCH | Connector Length 1.898

Download 185534-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

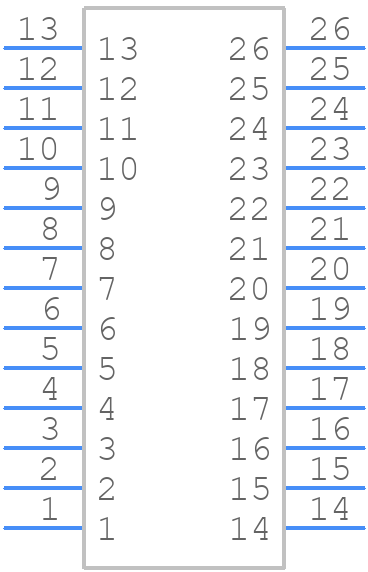

185534-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
185534-2 - TE Connectivity PCB footprint - Other - Other - 185534-2-1
click to zoom
3D Models
185534-2 - TE Connectivity - 3D model - Other - 185534-2-1
click to zoom

185534-2 Details

  • Manufacturer Part Number:

    185534-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    32 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    1.098 inch

  • Body Length:

    1.898 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

185534-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 185534-2 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the 185534-2 connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial equipment.
  • Yes, the 185534-2 connector is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity resistance up to 95% RH.
  • The 185534-2 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the 185534-2 connector is designed to be compatible with other TE Connectivity products, including cable assemblies, PCB connectors, and other interconnect solutions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

185534-2 Overview

Use the download button to access the 185534-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18553, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
