1856155 - Phoenix Contact

1856155 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the Phoenix Contact application notes for specific guidance.
• Can I use this connector in a high-vibration environment?
  Yes, the 1856155 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
• Is the connector suitable for use in harsh environments, such as those with high temperatures or humidity?
  The 1856155 connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and application notes for specific guidance on environmental considerations.
• Can I use this connector with a different wire gauge than recommended?
  While it's technically possible to use a different wire gauge, it's not recommended. The connector is designed to work optimally with the recommended wire gauge (0.5 mm² to 2.5 mm²). Using a different gauge may compromise the connector's performance, reliability, or even cause damage.

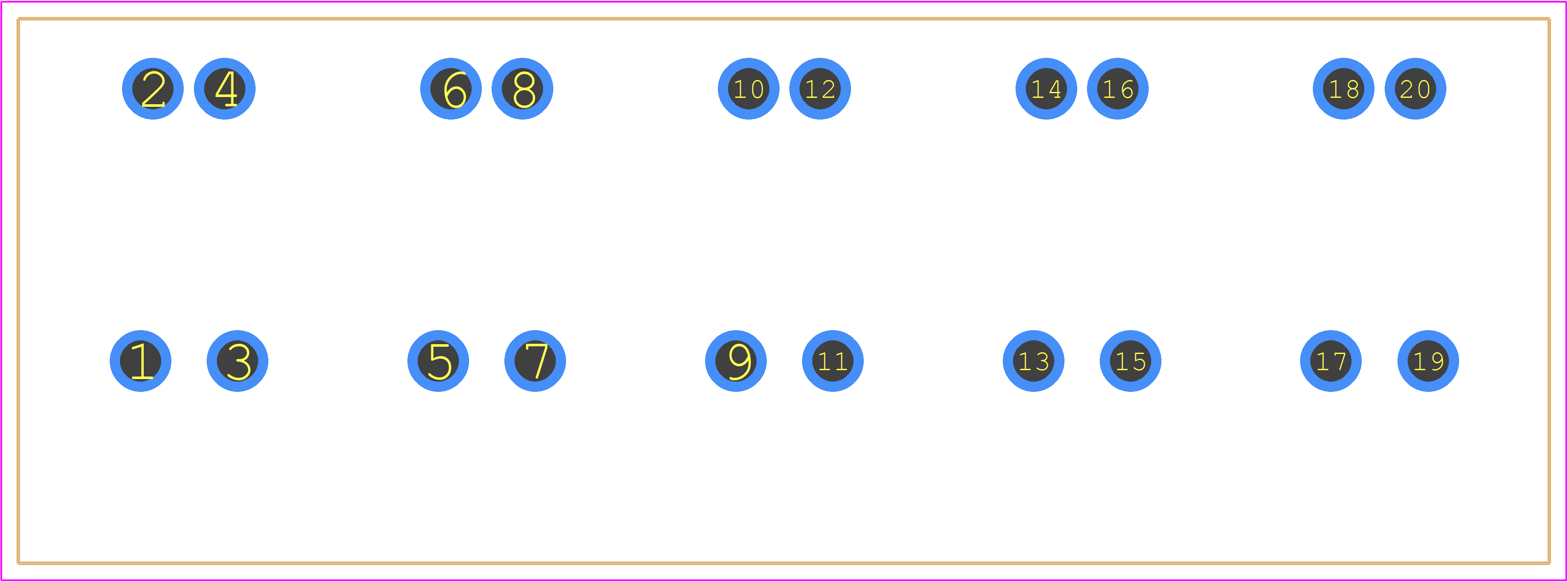

• Are there any specific PCB layout considerations I should be aware of when using this connector?
  Yes, it's essential to follow Phoenix Contact's recommended PCB layout guidelines to ensure proper connector operation and prevent damage. This includes maintaining a minimum clearance of 1.5 mm around the connector and avoiding vias or tracks under the connector.
