1858073 - Phoenix Contact

Description: IMC 1,5/ 6-STGF-3,81 - PCB connector, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: IMC 1,5/..-STGF, pitch: 3.81 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, plug-in system: COMBICON MC 1,5, locking: Scre

Download 1858073 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1858073 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

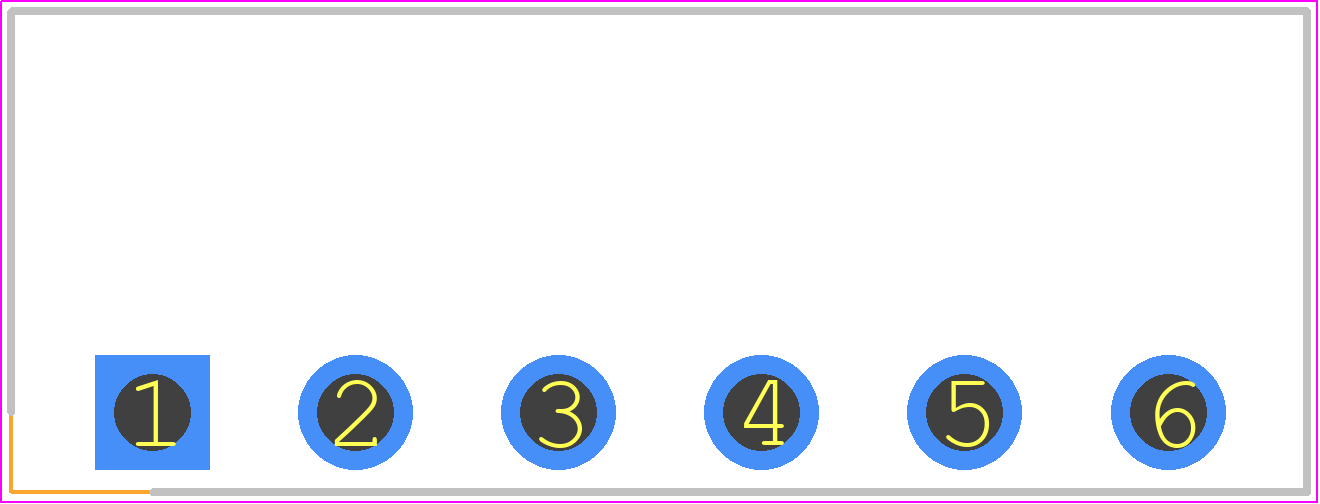

1858073 - Phoenix Contact PCB footprint - Header, Shrouded - Header, Shrouded - 1757271
click to zoom
3D Models
1858073 - Phoenix Contact - 3D model - Header, Shrouded - 1757271
click to zoom

1858073 Details

  • Manufacturer Part Number:

    1858073

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    PA, 94V-0

  • Fastening Method:

    SCREW

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1858073 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1858073 is -40°C to 125°C.
  • Yes, the 1858073 is suitable for outdoor use due to its IP67 rating, which provides protection against dust and water ingress.
  • The 1858073 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX- or IECEx-certified products.
  • The maximum wire size that can be connected to the 1858073 is 2.5 mm² (AWG 14).
  • Yes, the 1858073 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1858073 Overview

Use the download button to access the 1858073 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18580, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
