1862437 - Phoenix Contact

Description: SPTAF 1/ 4-5,0-EL - Printed circuit board terminal, nominal current: 16 A, rated voltage (III/2): 320 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: SPTAF 1/..-EL, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 2.6 mm, number of solder pins per potential: 2, type of packaging: packed

Download 1862437 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1862437 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

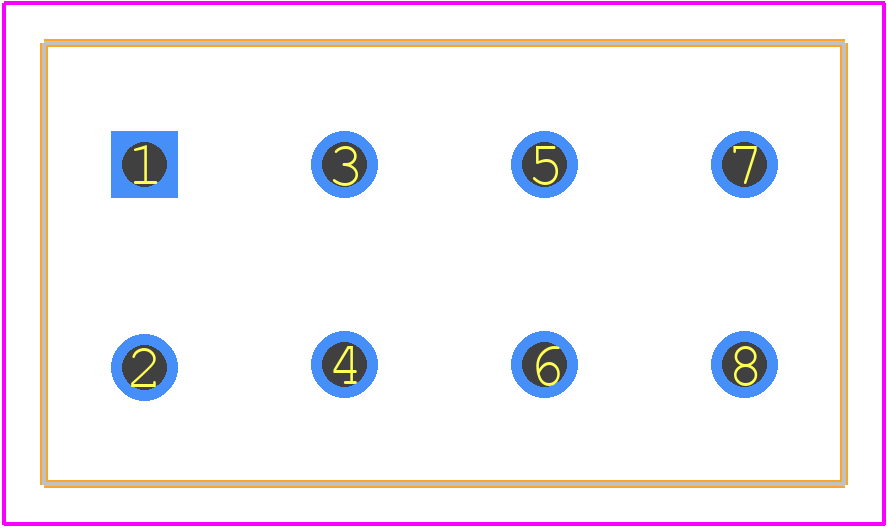

1862437 - Phoenix Contact PCB footprint - Other - Other - 1862437-3
click to zoom
3D Models
1862437 - Phoenix Contact - 3D model - Other - 1862437-3
click to zoom

1862437 Details

  • Manufacturer Part Number:

    1862437

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    16 A

  • Rated Voltage:

    320 V

  • Safety Approval:

    CUL; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG

1862437 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting.
  • Yes, the 1862437 connector is designed to withstand vibrations and shocks, but it's crucial to ensure proper mounting and screwing to the PCB to maintain reliability.
  • The 1862437 connector is designed for industrial applications and can operate in temperatures ranging from -40°C to 125°C. However, it's essential to consult the datasheet and Phoenix Contact's guidelines for specific environmental requirements.
  • Yes, the 1862437 connector is designed to be compatible with other Phoenix Contact products, including terminal blocks and PCB connectors, to provide a comprehensive connection solution.
  • The maximum current rating for the 1862437 connector is 12 A per pin, but it's essential to consult the datasheet and consider the specific application's requirements to ensure safe and reliable operation.
