1862616 - Phoenix Contact

Description: IMC 1,5/ 6-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: IMC 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.4 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1,5, Pin connector pattern alig

Download 1862616 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

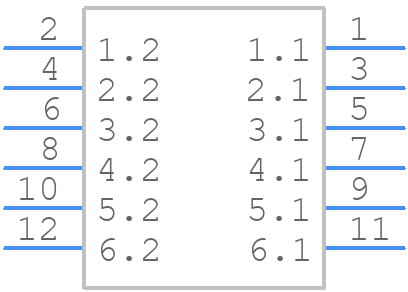

1862616 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

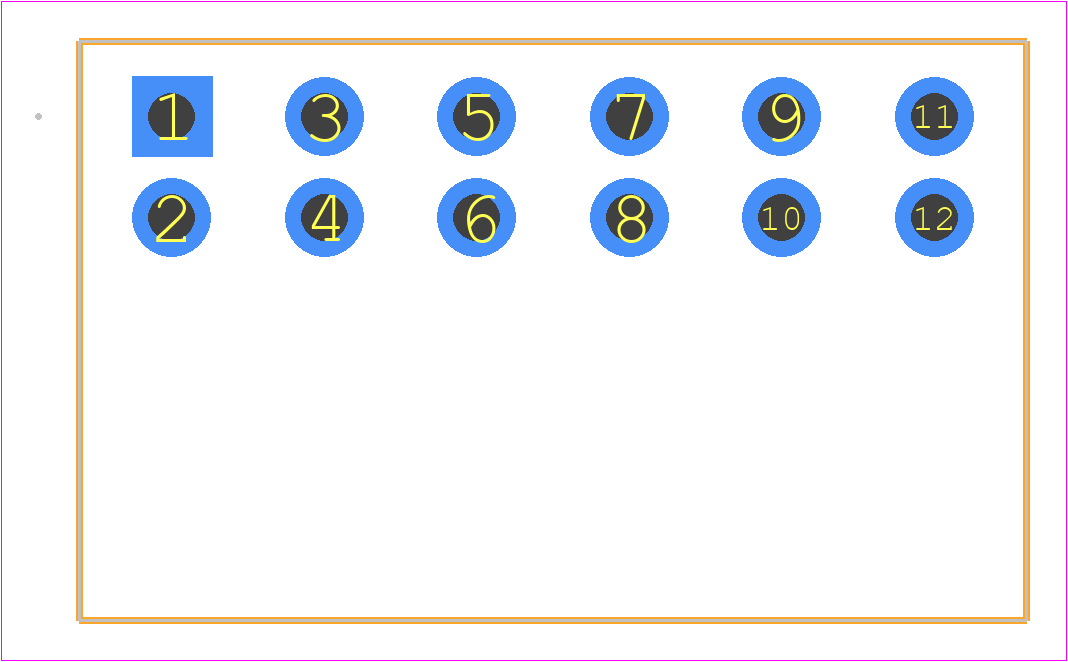

1862616 - Phoenix Contact PCB footprint - Other - Other - 1862616
click to zoom
3D Models
1862616 - Phoenix Contact - 3D model - Other - 1862616
click to zoom

1862616 Details

  • Manufacturer Part Number:

    1862616

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    6

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

1862616 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material.
  • Yes, the 1862616 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1862616 connector has a protection rating of IP67, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and installation to maintain the IP rating.
  • While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to stick to the recommended wire gauge range to ensure optimal performance.
  • Follow the recommended wire stripping and crimping procedures outlined in the Phoenix Contact application notes and technical guides to ensure reliable connections.
