STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER
Fastening Method:
CONNECTOR
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
6
Rated Current:
10 A
Rated Voltage:
300 V
Safety Approval:
CSA; DIN; IEC; UL
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
1863300000 Frequently Asked Questions (FAQs)
The operating temperature range of the 1863300000 is -40°C to 85°C, as specified by Weidmüller.
Yes, the 1863300000 is compatible with various industrial automation protocols, including PROFINET, EtherNet/IP, and Modbus TCP, making it suitable for use in industrial automation applications.
The maximum cable length supported by the 1863300000 depends on the specific application and cable type. However, as a general guideline, Weidmüller recommends a maximum cable length of 100 meters for most industrial Ethernet applications.
The 1863300000 has built-in surge protection, which meets the requirements of IEC 61000-4-5. However, depending on the specific application and environmental conditions, additional external protection may be necessary to ensure the device's reliability and safety.
The 1863300000 is not inherently explosion-proof, but it can be used in hazardous locations with proper installation and certification. Weidmüller offers explosion-proof variants of the device, such as the 1863300000-EX, which meet the requirements of ATEX and IECEx standards.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1863300000 Overview

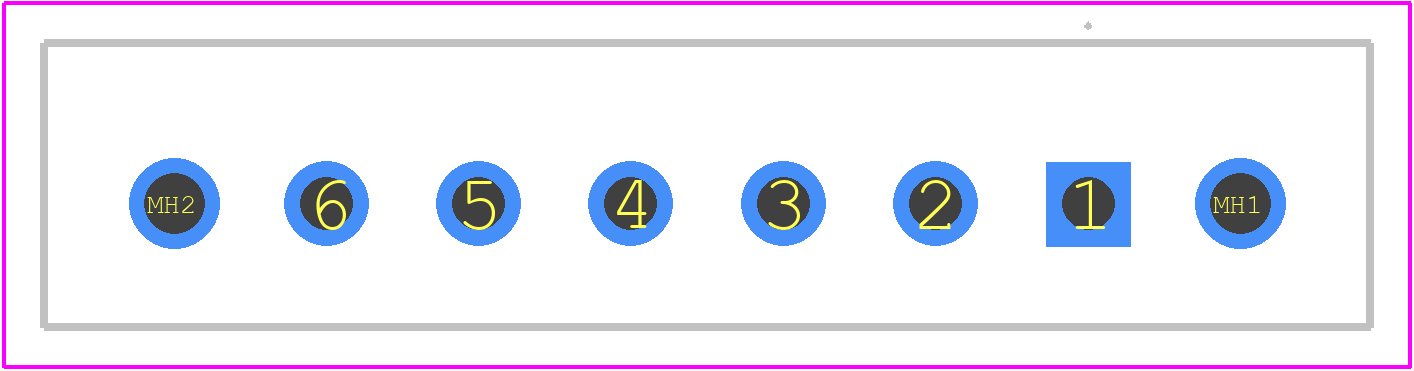

Use the download button to access the 1863300000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18633,
or try a keyword search, such as Terminals and Terminal Blocks
