1863340000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 8, THT/THR solder connection, Box

Download 1863340000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1863340000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

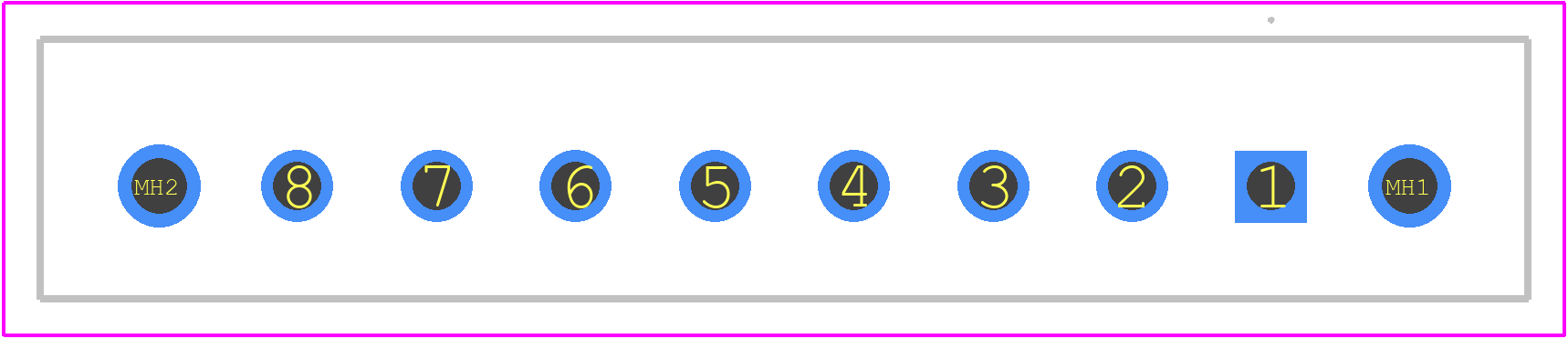

1863340000 - Weidmüller PCB footprint - Other - Other - 1863340000-2
click to zoom
3D Models
1863340000 - Weidmüller - 3D model - Other - 1863340000-2
click to zoom

1863340000 Details

  • Manufacturer Part Number:

    1863340000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR AND SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1863340000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1863340000 is -40°C to 85°C.
  • Yes, the 1863340000 is RoHS and REACH compliant, making it suitable for use in the European Union and other regions with similar regulations.
  • The maximum current rating of the 1863340000 is 16 A per pin, making it suitable for high-current applications.
  • Yes, the 1863340000 is designed to withstand harsh environments, including high temperatures, humidity, and vibration, making it suitable for use in industrial and outdoor applications.
  • Yes, the 1863340000 is designed to be compatible with other Weidmüller products, including connectors, cables, and terminals, making it easy to integrate into existing systems.
