1863480000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 16, THT/THR solder connection, Box

Download 1863480000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

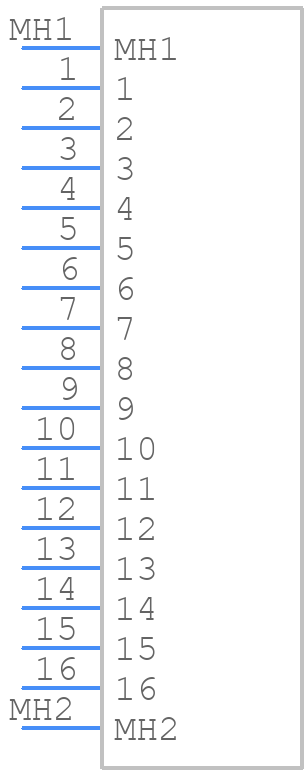

1863480000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

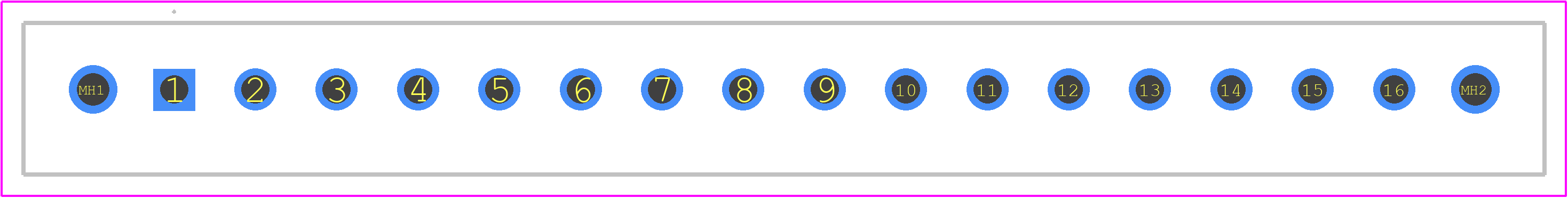

1863480000 - Weidmüller PCB footprint - Other - Other - 1863480000
click to zoom
3D Models
1863480000 - Weidmüller - 3D model - Other - 1863480000
click to zoom

1863480000 Details

  • Manufacturer Part Number:

    1863480000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR AND SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1863480000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1863480000 is -40°C to 85°C, making it suitable for use in a wide range of industrial applications.
  • Yes, the 1863480000 is designed for DIN rail mounting, making it easy to install and integrate into existing systems.
  • The maximum current rating of the 1863480000 is 16 A, making it suitable for use in applications that require high current handling.
  • Yes, the 1863480000 has built-in surge protection, which helps to protect the device and connected equipment from voltage spikes and surges.
  • Yes, the 1863480000 is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1863480000 Overview

Use the download button to access the 1863480000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18634, or try a keyword search, such as Terminals and Terminal Blocks
