1863770000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 9, THT/THR solder connection, Box

Download 1863770000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1863770000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

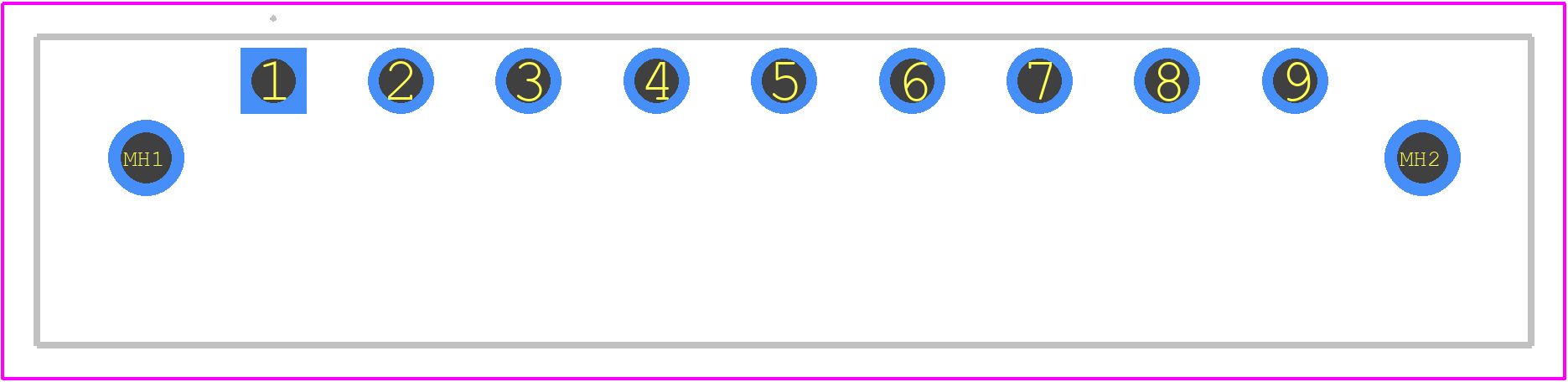

1863770000 - Weidmüller PCB footprint - Other - Other - 1863770000
click to zoom
3D Models
1863770000 - Weidmüller - 3D model - Other - 1863770000
click to zoom

1863770000 Details

  • Manufacturer Part Number:

    1863770000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7.97

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR AND SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; DIN; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1863770000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1863770000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1863770000 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental safety.
  • The recommended torque for the screw terminals on the 1863770000 is 0.5 Nm to 1.2 Nm, as specified by Weidmüller.
  • The 1863770000 is not designed for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The 1863770000 has an IP20 rating, which means it provides protection against solid objects larger than 12 mm and does not provide protection against water or moisture.
