1870630000 - Weidmüller

Description: PCB terminal, 160 V, 17.5 A, Pitch in mm: 3.50, 1.5 mm², Number of poles: 24, PUSH IN with actuator, THT/THR solder connection, 180°, Tube

Download 1870630000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

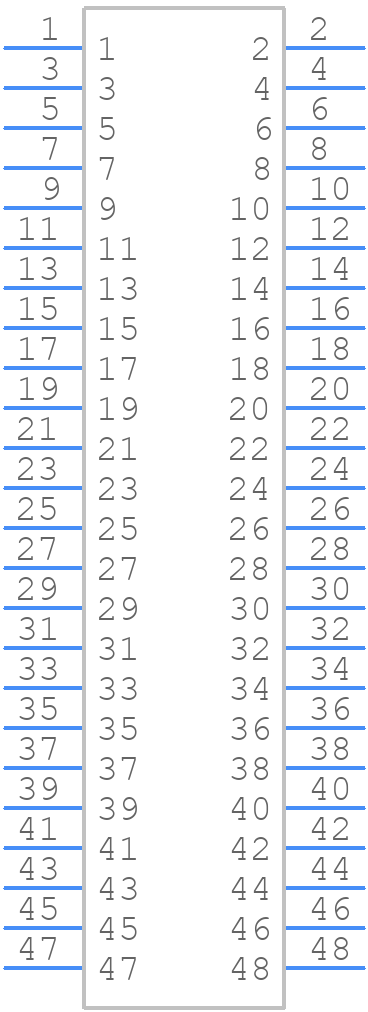

1870630000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

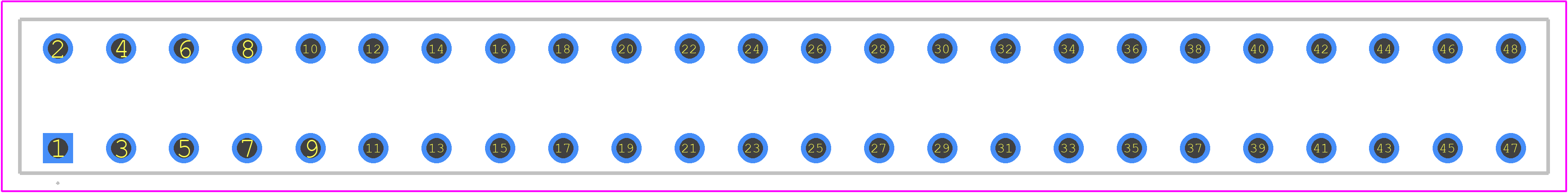

1870630000 - Weidmüller PCB footprint - Other - Other - 1870630000-1
click to zoom
3D Models
1870630000 - Weidmüller - 3D model - Other - 1870630000-1
click to zoom

1870630000 Details

  • Manufacturer Part Number:

    1870630000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    GLASS FILLED LCP, 94V-0

  • Fastening Method:

    PUSH-ON

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    24

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; UL; VDE

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    16 AWG
