1875454 - Phoenix Contact

Description: IMCV 1,5/ 5-G-3,81 - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Socket, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: IMCV 1,5/..-G, pitch: 3.81 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 2, plug-in system: COMBICON MC 1,5, Pin connector pattern al

Download 1875454 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1875454 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

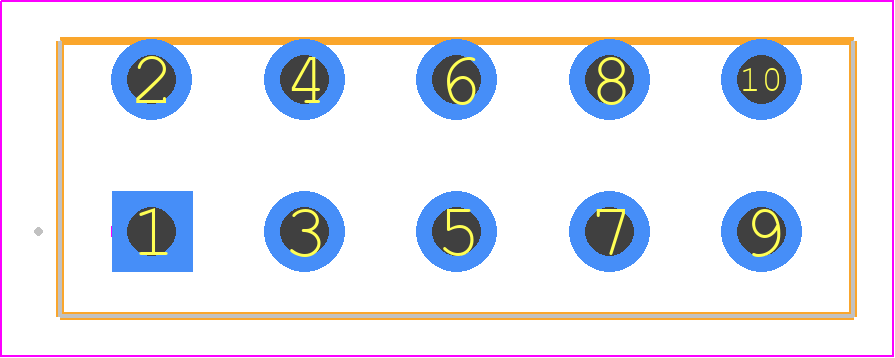

1875454 - Phoenix Contact PCB footprint - Other - Other - 1875454
click to zoom
3D Models
1875454 - Phoenix Contact - 3D model - Other - 1875454
click to zoom

1875454 Details

  • Manufacturer Part Number:

    1875454

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    PA; 94V-0

  • Fastening Method:

    PLUG IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    1.5 mm2

  • Wire Gauge:

    15 AWG

1875454 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact manual.
  • Yes, the 1875454 connector is designed to withstand vibrations up to 10 g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the 1875454 connector is designed to be compatible with other Phoenix Contact products, including their range of connectors, cables, and terminals.
  • The operating temperature range for the 1875454 connector is -40°C to 125°C, making it suitable for use in a wide range of environments.
  • Yes, the 1875454 connector is designed to be resistant to humidity and moisture, with an IP67 rating, making it suitable for use in humid or wet environments.
