1877480000 - Weidmüller

Description: PCB connector (board connection), 320 V, 27.5 A, Pitch in mm: 5.08, Number of poles: 7, THT/THR solder connection, Box

Download 1877480000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1877480000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

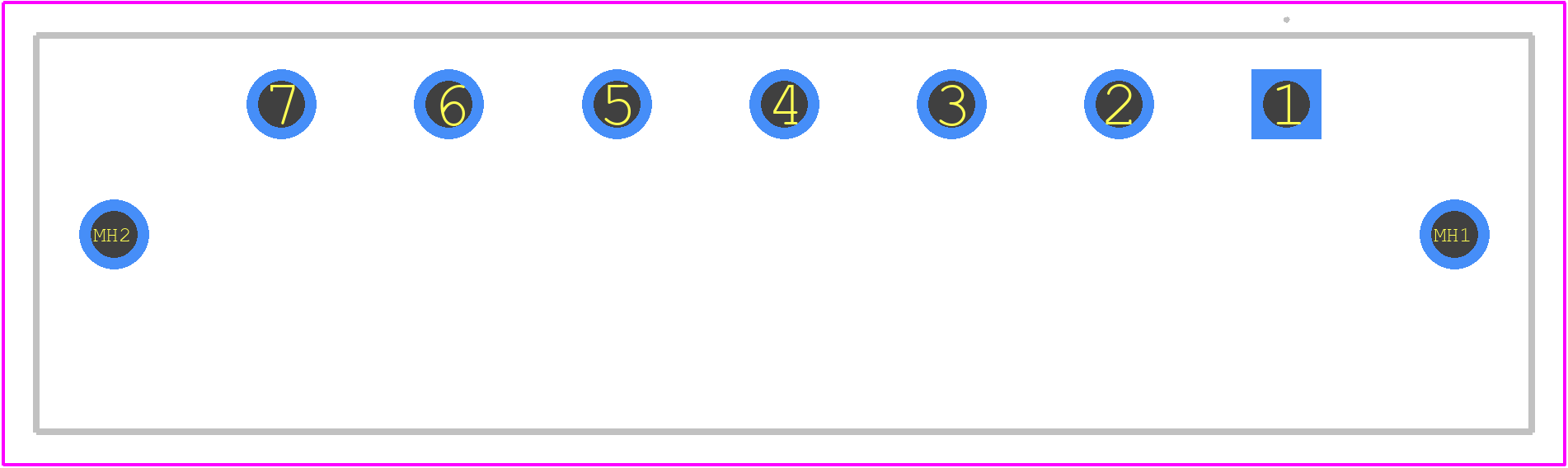

1877480000 - Weidmüller PCB footprint - Other - Other - 1877480000-2
click to zoom
3D Models
1877480000 - Weidmüller - 3D model - Other - 1877480000-2
click to zoom

1877480000 Details

  • Manufacturer Part Number:

    1877480000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1877480000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1877480000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1877480000 is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and chemical safety.
  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified by Weidmüller.
  • The 1877480000 is not designed for use in hazardous locations. It is intended for general-purpose industrial applications only.
  • The 1877480000 has an IP20 rating, providing protection against solid objects larger than 12 mm and no protection against water.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1877480000 Overview

Use the download button to access the 1877480000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18774, or try a keyword search, such as Terminals and Terminal Blocks
