1889987 - Phoenix Contact

Description: MKKDS 3/ 4-5,08 - Printed circuit board terminal, nominal current: 22 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 8, number of rows: 2, number of positions per row: 4, product range: MKKDS 3, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 5 mm, number of solder pins per potentia

Download 1889987 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1889987 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

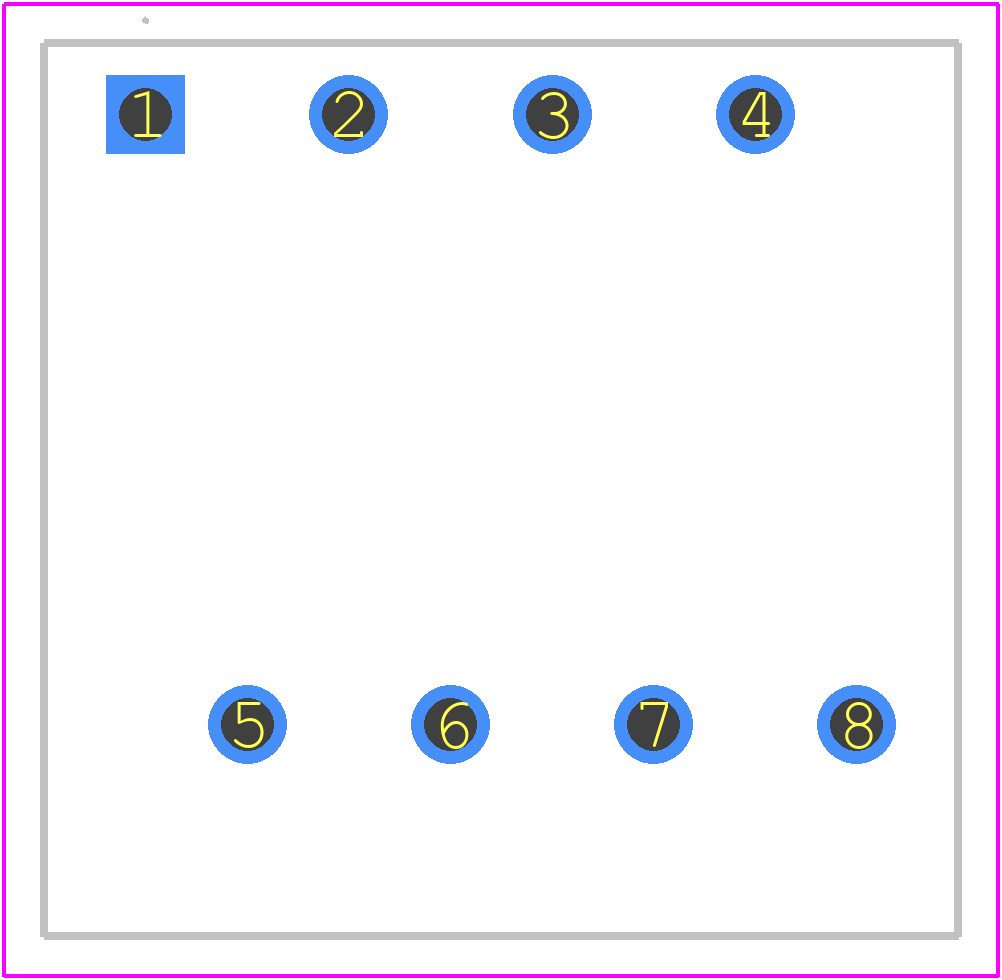

1889987 - Phoenix Contact PCB footprint - Other - Other - 1889987
click to zoom
3D Models
1889987 - Phoenix Contact - 3D model - Other - 1889987
click to zoom

1889987 Details

  • Manufacturer Part Number:

    1889987

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    4

  • Rated Current:

    22 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CCA;CSA;CUL;EAC;EX;SEV;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1889987 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 1889987 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing and validation for specific high-vibration applications.
  • The 1889987 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95%. However, it's recommended to consult with Phoenix Contact or a qualified engineer for specific environmental requirements.
  • Yes, the 1889987 connector is designed to be compatible with other Phoenix Contact products, including the FMC series. However, it's recommended to verify compatibility and consult with Phoenix Contact or a qualified engineer for specific application requirements.
  • The maximum current rating for the 1889987 connector is 12 A per contact, depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1889987 Overview

Use the download button to access the 1889987 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 18899, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
