1890358 - Phoenix Contact

Description: FFKDSA1/H1-5,08- 8 - Printed circuit board terminal, nominal current: 15 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm<sup>2</sup>, number of potentials: 8, number of rows: 1, number of positions per row: 8, product range: FFKDS(A)/H1, pitch: 5.08 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.4 mm, number of solder pins per potential: 2, type of packaging: packe

Download 1890358 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1890358 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

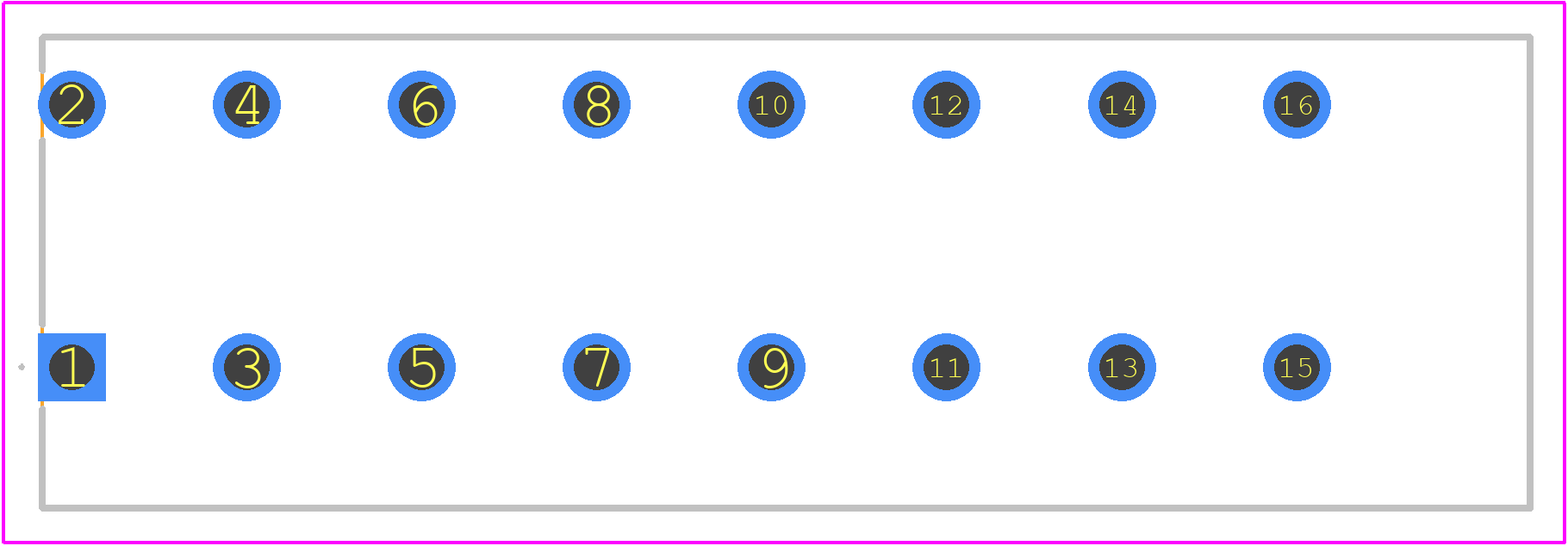

1890358 - Phoenix Contact PCB footprint - Other - Other - 1890358_
click to zoom
3D Models
1890358 - Phoenix Contact - 3D model - Other - 1890358_
click to zoom

1890358 Details

  • Manufacturer Part Number:

    1890358

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    PUSH-IN/SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL;EAC;EX;UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1890358 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the Phoenix Contact torque guide for specific recommendations.
  • Yes, the 1890358 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to maintain the connector's integrity.
  • The 1890358 connector has a IP67 rating, making it suitable for outdoor use and exposure to dust and water. However, it's essential to ensure proper sealing and protection of the connector and cables to maintain its integrity.
  • The 1890358 connector is designed for use with cables of specific sizes and types. It's essential to consult the Phoenix Contact cable guide to ensure compatibility and proper termination.
  • The 1890358 connector has an operating temperature range of -40°C to +125°C. However, it's essential to consider the specific application and environmental conditions to ensure the connector's performance and reliability.
