1893740 - Phoenix Contact

Description: ZEC 1,0/ 8-ST-3,5 C1 R1,8 - PCB direct plug, nominal cross section: 1 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 200 V, contact surface: Sn, contact connection type: Socket, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: ZEC 1,0/..-ST, pitch: 3.5 mm, connection method: Spring-cage connection, mounting: Direct plug-in method, conductor/PCB connection direction: 0 °, plug-in system: ZEC, locking: Snap-in locking, mou

Download 1893740 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1893740 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

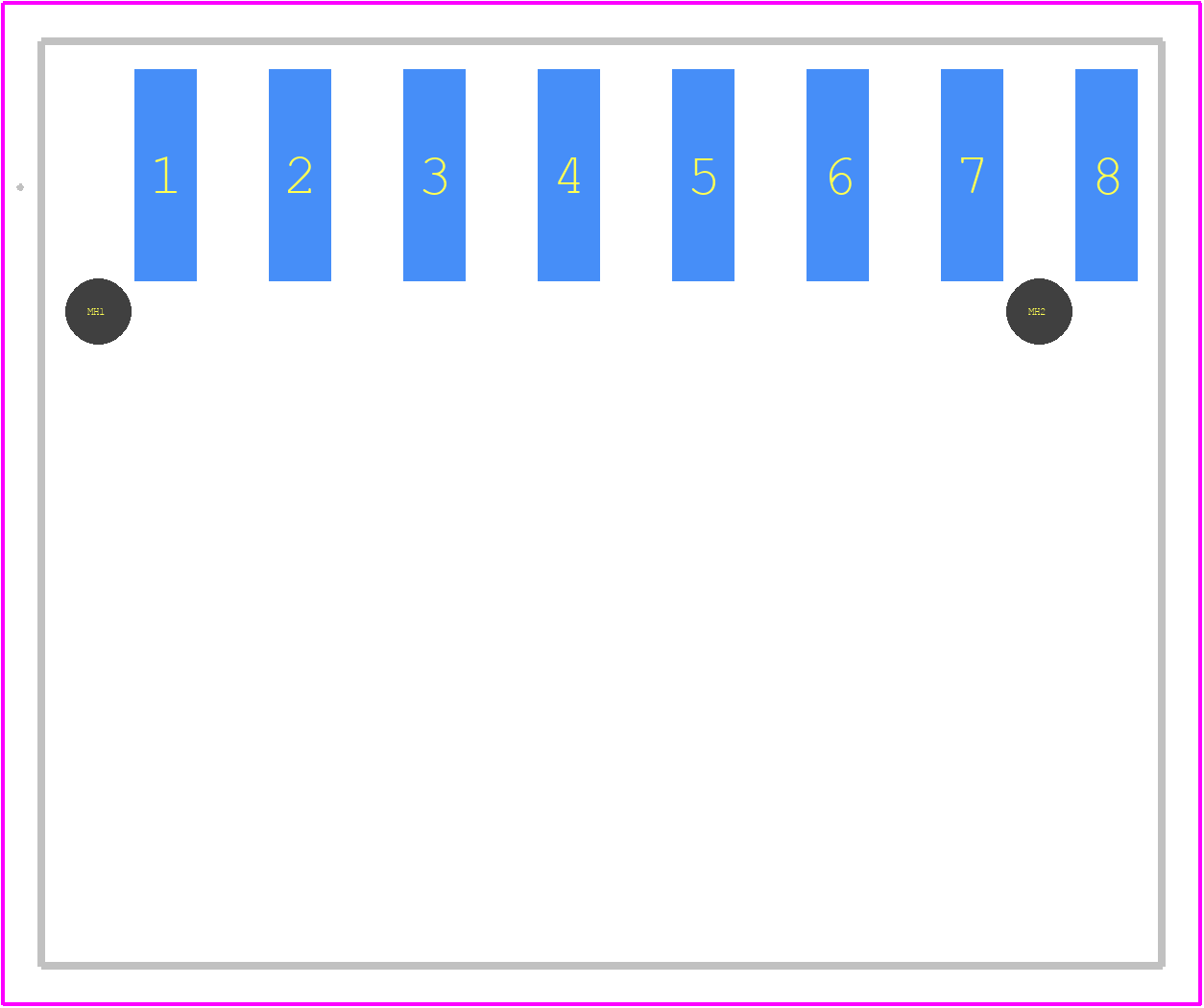

1893740 - Phoenix Contact PCB footprint - Other - Other - 1893740-2
click to zoom
3D Models
1893740 - Phoenix Contact - 3D model - Other - 1893740-2
click to zoom

1893740 Details

  • Manufacturer Part Number:

    1893740

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Greece

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.96

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1893740 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 lbf·in to 7.1 lbf·in).
  • Yes, the 1893740 is designed to withstand high vibrations and is suitable for use in applications with vibrations up to 10 g (according to IEC 60068-2-6).
  • Yes, the 1893740 has a protection rating of IP67, making it suitable for outdoor use and resistant to dust and water ingress.
  • The 1893740 can operate in temperatures ranging from -40°C to 100°C (-40°F to 212°F).
  • Yes, the 1893740 is suitable for use with stranded wires, but it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
