1893782 - Phoenix Contact

Description: ZEC 1,0/12-ST-3,5 C1 R1,12 - PCB direct plug, nominal cross section: 1 mm<sup>2</sup>, color: green, nominal current: 8 A, rated voltage (III/2): 200 V, contact surface: Sn, contact connection type: Socket, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: ZEC 1,0/..-ST, pitch: 3.5 mm, connection method: Spring-cage connection, mounting: Direct plug-in method, conductor/PCB connection direction: 0 °, plug-in system: ZEC, locking: Snap-in locking,

Download 1893782 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1893782 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

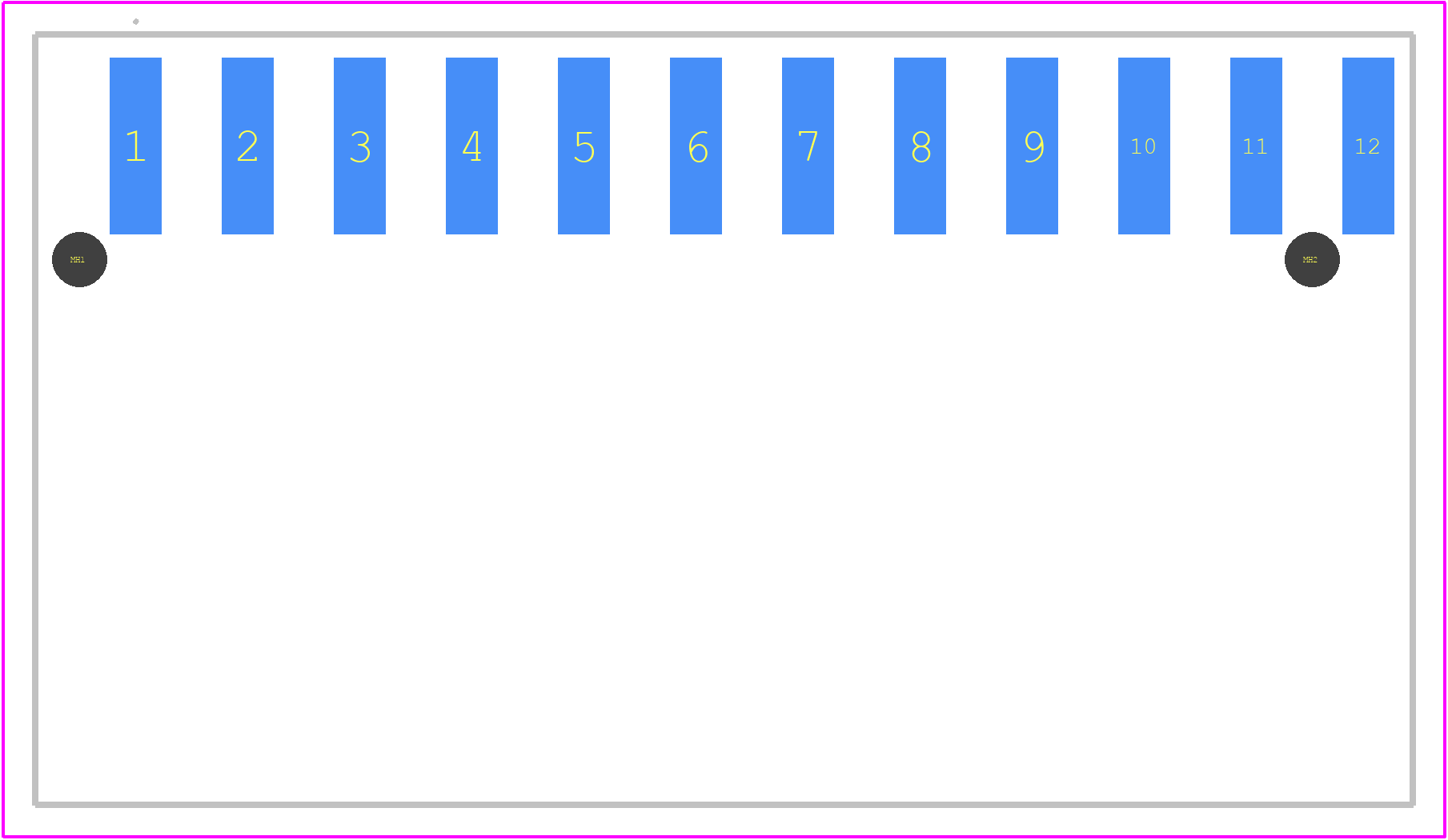

1893782 - Phoenix Contact PCB footprint - Other - Other - 1893782
click to zoom
3D Models
1893782 - Phoenix Contact - 3D model - Other - 1893782
click to zoom

1893782 Details

  • Manufacturer Part Number:

    1893782

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Greece

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.96

  • Fastening Method:

    SPRING LOADED

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK
