The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 190-009-113L009 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, making it suitable for use in applications such as transportation, industrial, and aerospace.
The 190-009-113L009 connector has a IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection when using the connector in outdoor environments.
The 190-009-113L009 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications, including those with extreme temperature requirements.
While the datasheet specifies 24 AWG wire, the connector can accommodate wire sizes ranging from 20 AWG to 28 AWG. However, it's essential to ensure that the wire size and insulation meet the connector's specifications to ensure reliable connections.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
190-009-113L009 Overview

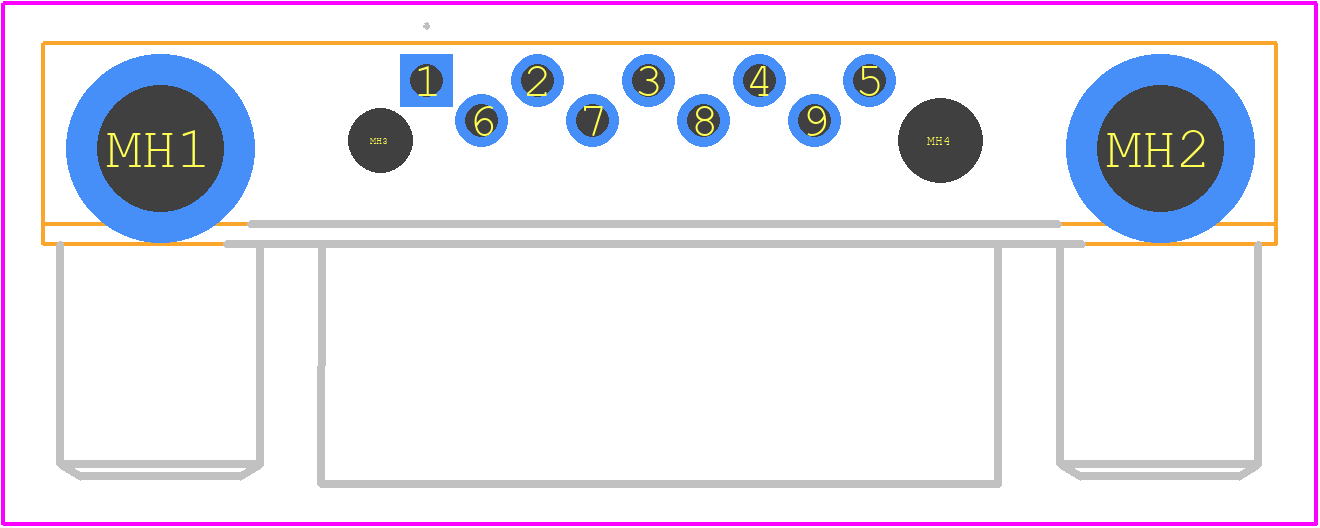

Use the download button to access the 190-009-113L009 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 190-0,
or try a keyword search, such as D Type Connectors
Suggested Parts
If you searched for 190-009-113L009, you might also be interested in these parts:
