1903601-2 - TE Connectivity

Description: Body Features: Primary Product Color Black | Configuration Features: PCB Mount Orientation Vertical | Number of Positions 8 | Number of Rows 2 | Contact Features: Contact Type Pin | Contact Mating Area Plating Material Thickness 15 MICIN | Contact Mating Area Plating Material Thickness .38 MICM | Contact Mating Area Plating Material Gold | Contact Current Rating (Max) 15 AMP | Housing Features: Centerline (Pitch) .15 INCH | Centerline (Pitch) 3.81 MM | Housing Material Polyester GF | Industry Standards: UL

Download 1903601-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

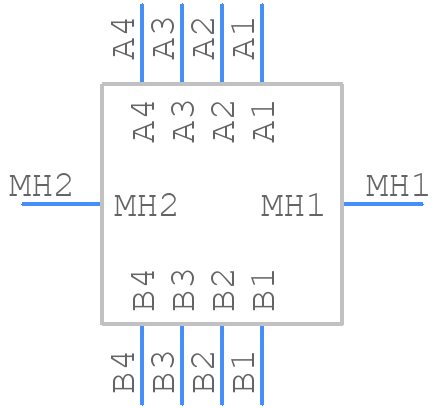

Symbol
1903601-2 - TE Connectivity - PCB symbol
click to zoom

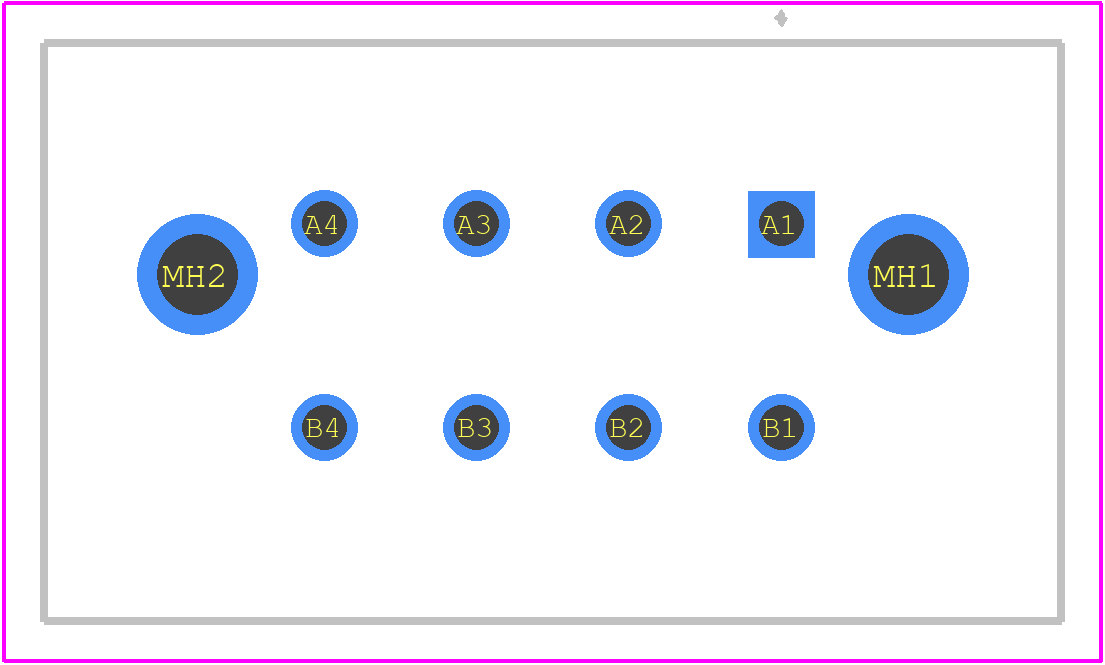

PCB Footprints
1903601-2 - TE Connectivity PCB footprint - Other - Other - 1903601-2-2
click to zoom
3D Models
1903601-2 - TE Connectivity - 3D model - Other - 1903601-2-2
click to zoom

1903601-2 Details

  • Manufacturer Part Number:

    1903601-2

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.8

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    15A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    15 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.81 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

1903601-2 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals to ensure secure connections.
  • Yes, the 1903601-2 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow TE Connectivity's guidelines for vibration testing and validation.
  • The maximum operating temperature for the 1903601-2 connector is 125°C (257°F), but it's recommended to derate the current carrying capacity at higher temperatures to ensure reliable operation.
  • The 1903601-2 connector has a IP67 rating, which means it can withstand temporary immersion in water and exposure to certain chemicals, but it's recommended to follow TE Connectivity's guidelines for environmental testing and validation.
  • The recommended wire size for the 1903601-2 connector is 24-18 AWG, and it's recommended to use wires with a temperature rating of at least 105°C (221°F) to ensure reliable operation.
