The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 191-025-213L001 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 191-025-213L001 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for continuous exposure to harsh outdoor environments. If you need a connector for outdoor use, consider using a connector with a higher IP rating or additional environmental protection.
While the datasheet recommends using AWG 24-20 wire, you can use other wire sizes with caution. However, using smaller or larger wire sizes may affect the connector's performance, reliability, and durability. Consult with NorComp or a qualified engineer to determine the suitability of alternative wire sizes.
The 191-025-213L001 connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F). Exceeding this temperature range may affect the connector's performance, reliability, and lifespan.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
191-025-213L001 Overview

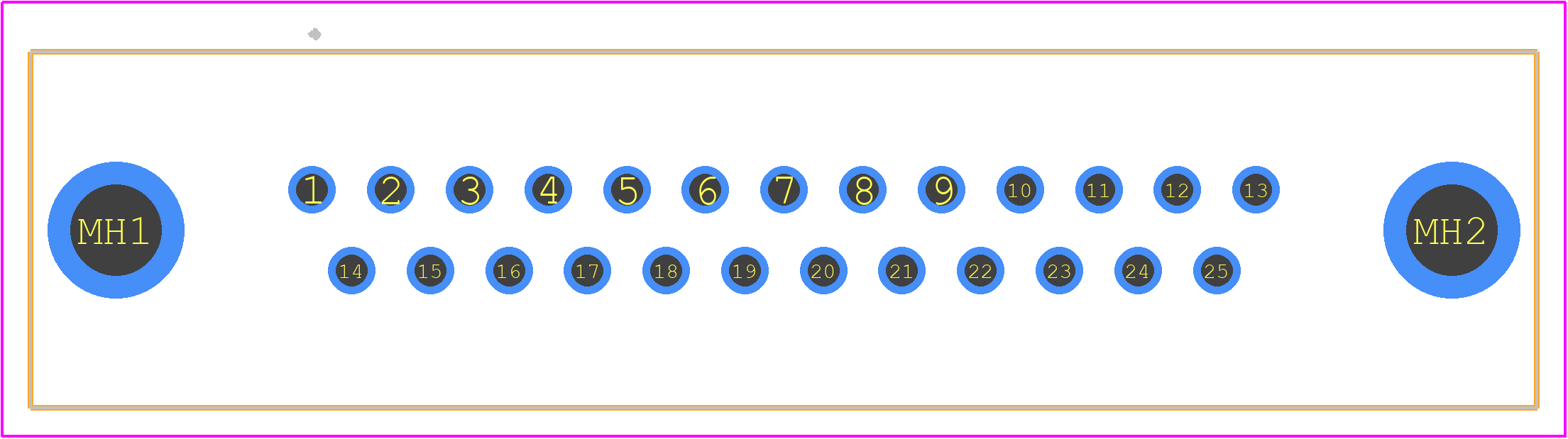

Use the download button to access the 191-025-213L001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 191-0,
or try a keyword search, such as D Type Connectors
