1913646 - Phoenix Contact

Description: PC 6-16/ 2-G-10,16 - PCB headers, nominal cross section: 6 mm<sup>2</sup>, color: green, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact surface: Ag, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PC 6-16/..-G, pitch: 10.16 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON

Download 1913646 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1913646 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

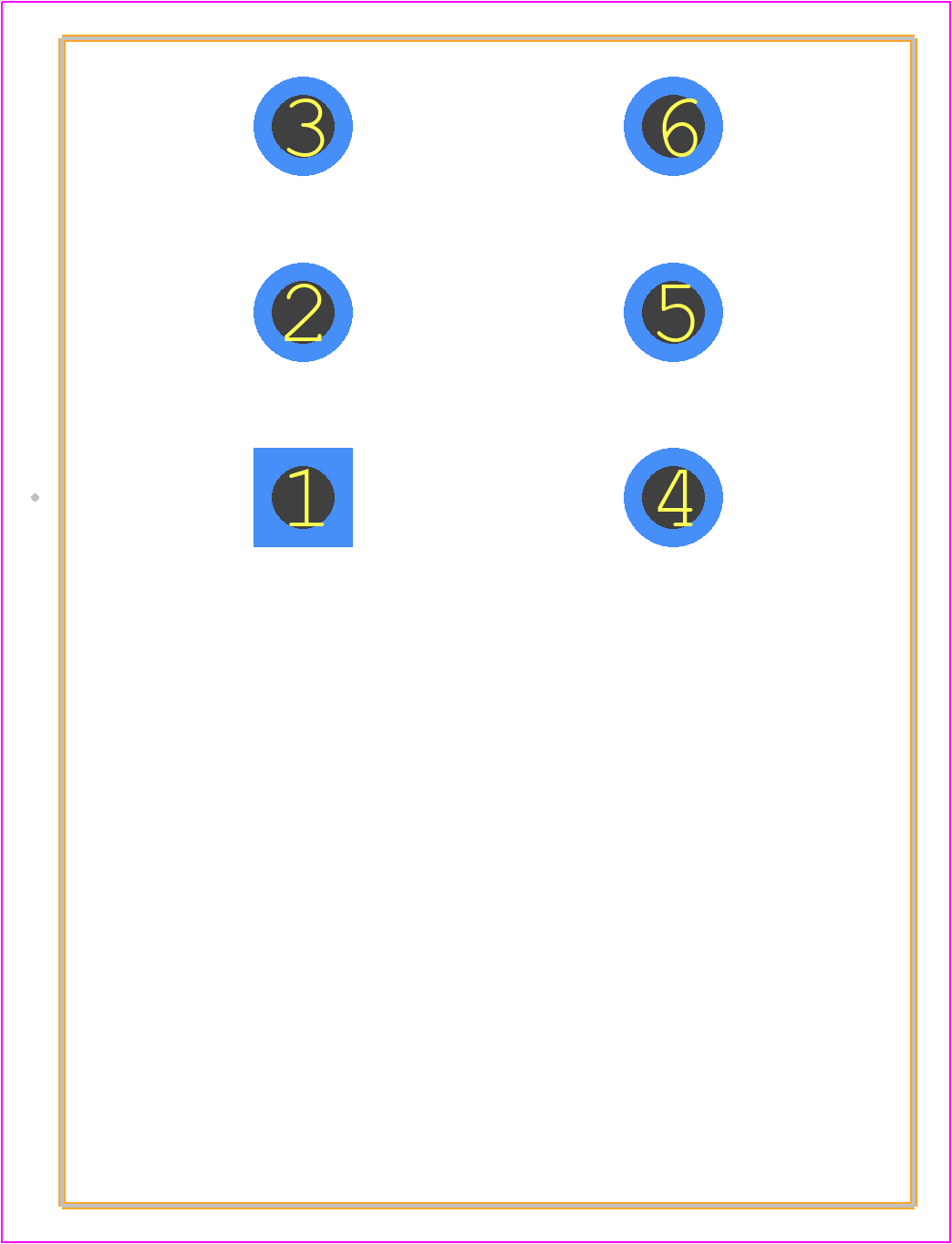

1913646 - Phoenix Contact PCB footprint - Other - Other - 1913646
click to zoom
3D Models
1913646 - Phoenix Contact - 3D model - Other - 1913646
click to zoom

1913646 Details

  • Manufacturer Part Number:

    1913646

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    2

  • Additional Feature:

    PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    76 A

  • Rated Voltage:

    1000 V

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1913646 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1913646 is -40°C to 125°C.
  • Yes, the 1913646 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1913646 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The 1913646 can accommodate wire sizes up to 2.5 mm² (14 AWG).
  • Yes, the 1913646 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1913646 Overview

Use the download button to access the 1913646 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19136, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
