1932494 - Phoenix Contact

Description: MKDSP 25/ 2-15,00-F - Printed circuit board terminal, nominal current: 125 A, rated voltage (III/2): 1000 V, nominal cross section: 35 mm<sup>2</sup>, number of potentials: 2, number of rows: 1, number of positions per row: 2, product range: MKDSP 25/..-F, pitch: 15 mm, connection method: Screw connection with tension sleeve, screw head form: Z2L Slotted Pozidriv, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.5 mm, number of so

Download 1932494 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1932494 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

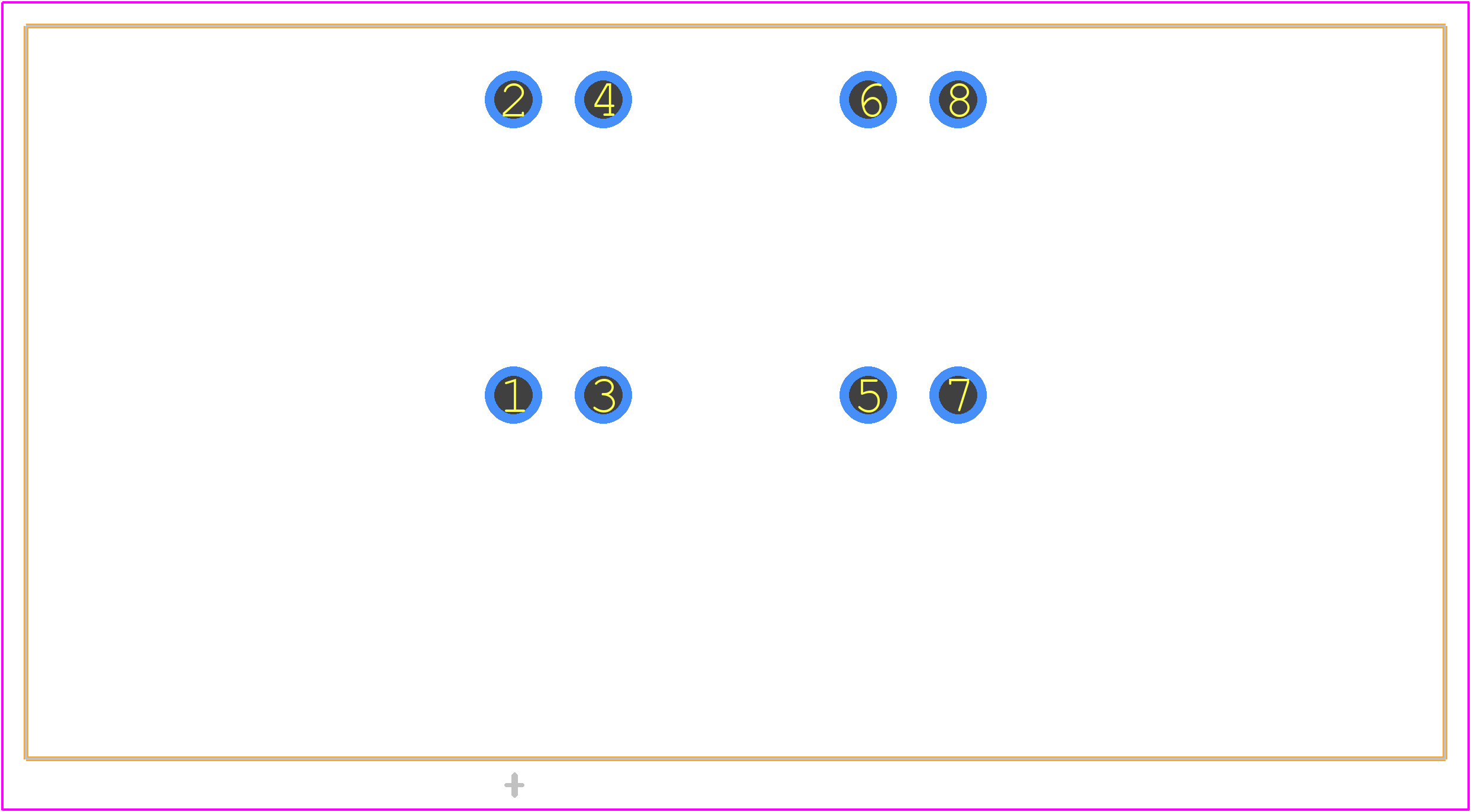

1932494 - Phoenix Contact PCB footprint - Other - Other - 1932494-2
click to zoom
3D Models
1932494 - Phoenix Contact - 3D model - Other - 1932494-2
click to zoom

1932494 Details

  • Manufacturer Part Number:

    1932494

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Slovakia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.58

  • Additional Feature:

    PA; UL 94V0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    2

  • Rated Current:

    125 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    35 mm2

  • Wire Gauge:

    2 AWG

1932494 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific PCB design and layout to ensure proper mounting and to avoid damage to the PCB or connector.
  • Yes, the 1932494 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and secure fastening to the PCB to maintain reliability in high-vibration environments.
  • The 1932494 connector is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humid environments. However, it's essential to consult the specific application requirements and ensure proper sealing and protection to maintain reliability.
  • Yes, the 1932494 connector is designed to be compatible with other Phoenix Contact products and accessories, such as cables, adapters, and connectors. However, it's essential to consult the specific product documentation and compatibility charts to ensure proper compatibility.
  • The maximum current rating for the 1932494 connector is 12 A per contact. However, it's essential to consult the specific application requirements and ensure proper wire sizing and termination to avoid overheating or damage to the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1932494 Overview

Use the download button to access the 1932494 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19324, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
