1932768-1 - TE Connectivity

Description: Body Features: Ejector Type Push-Pull | Primary Product Color Black | Configuration Features: Number of Positions 6 | Card Detection Switch Without | Card Insertion Style Normal Insertion | Number of Loaded Positions 6 | Contact Features: Contact Current Rating (Max) 1.2 AMP | Contact Mating Retention Without | Contact Base Material Copper Alloy | Dimensions: Profile Height from PCB .079 INCH | Profile Height from PCB 2 MM | Housing Features: Centerline (Pitch) 2.54 MM | Housing Material Thermoplastic | Cen

Download 1932768-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1932768-1 - TE Connectivity - PCB symbol
click to zoom

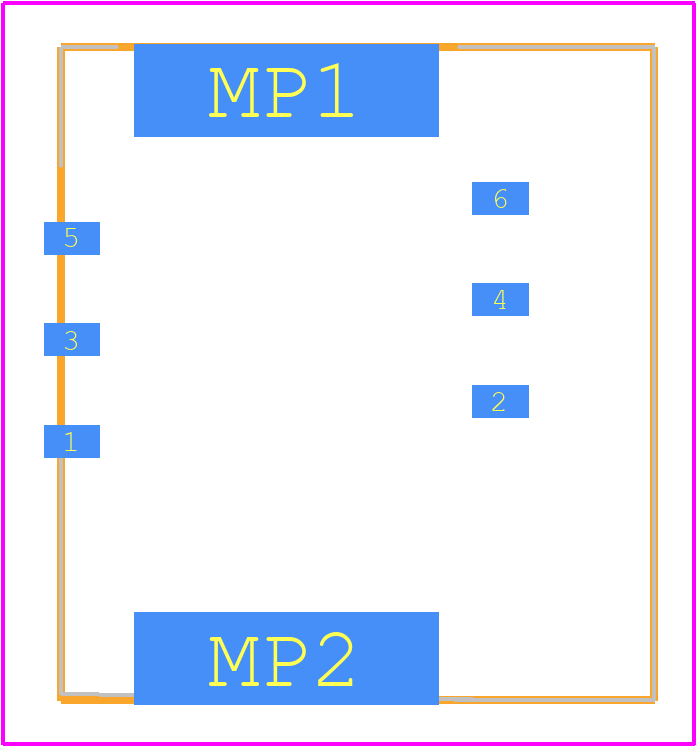

PCB Footprints
1932768-1 - TE Connectivity PCB footprint - Other - Other - 1932768-1-4
click to zoom
3D Models
1932768-1 - TE Connectivity - 3D model - Other - 1932768-1-4
click to zoom

1932768-1 Details

  • Manufacturer Part Number:

    1932768-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    10 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    0.079 inch

  • Body Depth:

    0.079 inch

  • Body Length:

    0.642 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • DIN Conformance:

    NO

  • Durability:

    5000 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.2A

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Panel Mount:

    NO

  • Plating Thickness:

    8u inch

  • Rated Current (Signal):

    1.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

1932768-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-5.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • Yes, the 1932768-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
  • The operating temperature range for the 1932768-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • The 1932768-1 connector has a IP67 rating, which means it can withstand temporary immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's crucial to ensure proper sealing and follow TE Connectivity's guidelines for use in humid or wet environments.
  • The recommended wire size for the 1932768-1 connector is 24-18 AWG (0.25-1.5 mm²). It's essential to use wires with a temperature rating that matches the connector's operating temperature range. Consult TE Connectivity's application notes for specific guidance on wire selection.
