Part Image

1939303 - Phoenix Contact

Description: MC 0,5/ 8-G-2,5 THT - PCB headers, nominal cross section: 0.5 mm<sup>2</sup>, color: black, nominal current: 4 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: MC 0,5/..-G-THT, pitch: 2.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 3.8 mm, number of solder pins per potential: 1, plug-in system: COMBICON FK-MC 0,5, Pin co

Download 1939303 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1939303 - Phoenix Contact - PCB symbol
click to zoom

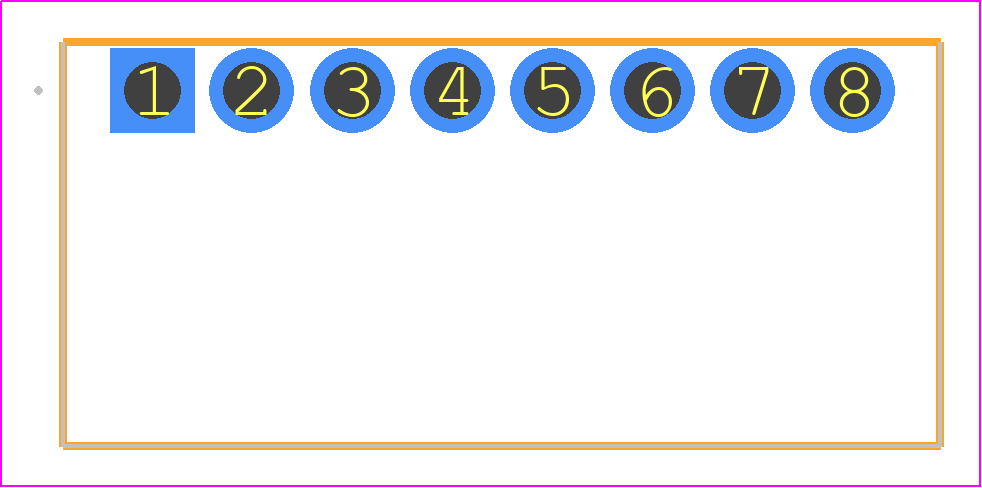

PCB Footprints
1939303 - Phoenix Contact PCB footprint - Other - Other - 1939303
click to zoom
3D Models
1939303 - Phoenix Contact - 3D model - Other - 1939303
click to zoom

1939303 Details

  • Manufacturer Part Number:

    1939303

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: POLYAMIDE, 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    4 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1939303 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
  • Yes, the 1939303 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for specific vibration profiles.
  • The 1939303 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consider the specific environmental conditions and potential derating factors.
  • While it's technically possible, using a different wire gauge may affect the connector's performance and reliability. It's recommended to stick to the recommended wire gauge range (0.5 mm² to 1.5 mm²) for optimal results.
  • Yes, it's essential to follow the recommended PCB layout guidelines, including keeping the connector at least 2 mm away from the PCB edge and ensuring a minimum of 1.5 mm clearance around the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1939303 Overview

Use the download button to access the 1939303 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19393, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
