1943110000 - Weidmüller

Description: PCB connector (board connection), 160 V, 17.5 A, Pitch in mm: 3.81, Number of poles: 13, THT solder connection, Box

Download 1943110000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1943110000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

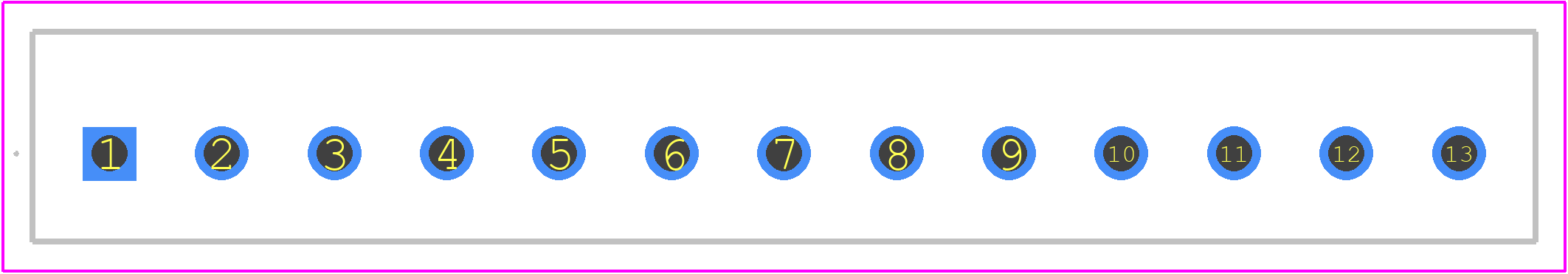

1943110000 - Weidmüller PCB footprint - Other - Other - 1943110000
click to zoom
3D Models
1943110000 - Weidmüller - 3D model - Other - 1943110000
click to zoom

1943110000 Details

  • Manufacturer Part Number:

    1943110000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, GLASS FILLED PA

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    13

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; EAC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1943110000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1943110000 is -40°C to 85°C.
  • Yes, the 1943110000 is RoHS and REACH compliant, making it suitable for use in the European Union.
  • The typical lead time for delivery of the 1943110000 is 2-4 weeks, depending on the quantity and availability.
  • Yes, the 1943110000 is designed to be used in harsh environments, including industrial and outdoor applications, due to its rugged construction and IP67 rating.
  • Yes, the 1943110000 is designed to be compatible with other Weidmüller products, including their range of connectors and interfaces.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1943110000 Overview

Use the download button to access the 1943110000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19431, or try a keyword search, such as Terminals and Terminal Blocks
