1953334 - Phoenix Contact

Description: MCDN 1,5/15-G1-3,5 RNP14THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 30, number of rows: 2, number of positions: 15, number of connections: 30, product range: MCDN 1,5/..-G1-RN-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON

Download 1953334 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

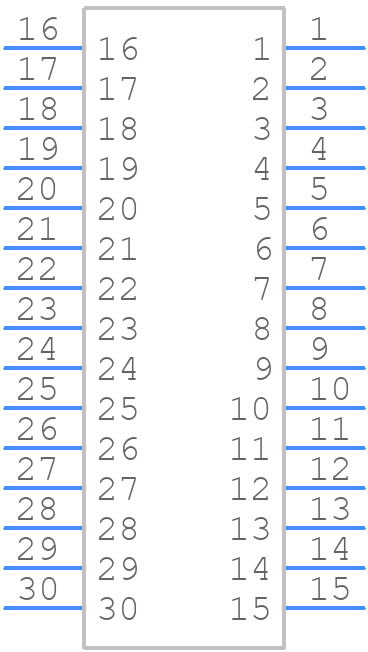

1953334 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

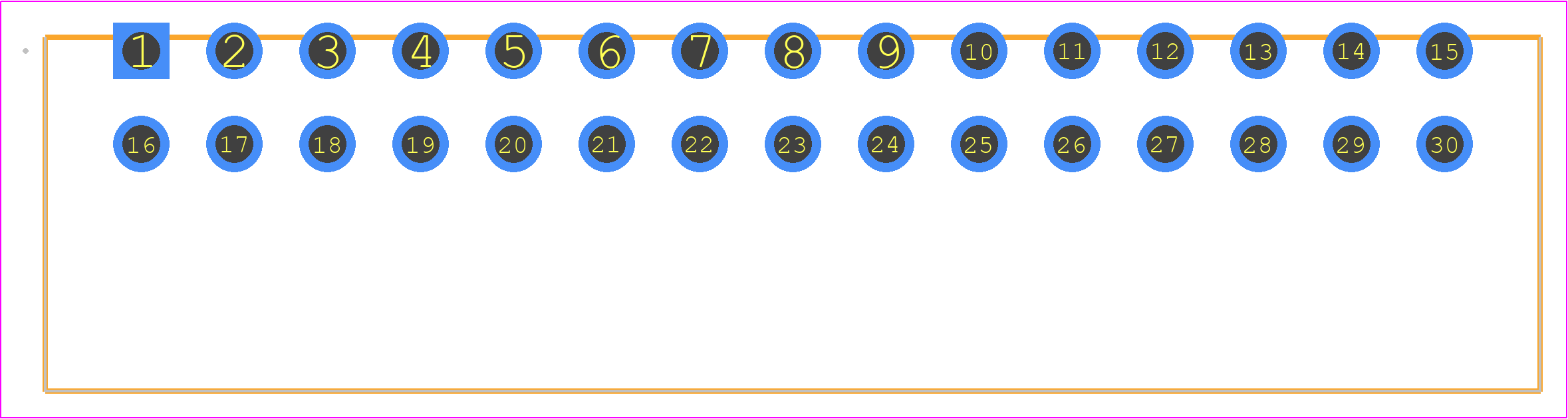

1953334 - Phoenix Contact PCB footprint - Other - Other - 1953334
click to zoom
3D Models
1953334 - Phoenix Contact - 3D model - Other - 1953334
click to zoom

1953334 Details

  • Manufacturer Part Number:

    1953334

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    LCP, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    15

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1953334 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines for connectors.
  • Yes, the 1953334 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
  • The 1953334 connector has a protection rating of IP67, which means it is protected against dust and temporary immersion in water up to 1 meter. However, it's recommended to use additional protection measures for outdoor use or exposure to harsh environmental conditions.
  • While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to ensure that the wire gauge meets the connector's electrical and mechanical requirements, and that the connection is secure and reliable.
  • To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet, and ensure that the connector is properly aligned and seated.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
