1953842 - Phoenix Contact

Description: MCDN 1,5/15-G1-3,5 P26THR - PCB headers, nominal cross section: 1.5 mm<sup>2</sup>, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Sn, contact connection type: Pin, number of potentials: 30, number of rows: 2, number of positions: 15, number of connections: 30, product range: MCDN 1,5/..-G1-THR, pitch: 3.5 mm, mounting: THR soldering / wave soldering, pin layout: Linear pinning, solder pin [P]: 2.6 mm, number of solder pins per potential: 1, plug-in system: COMBICON FMC 1

Download 1953842 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

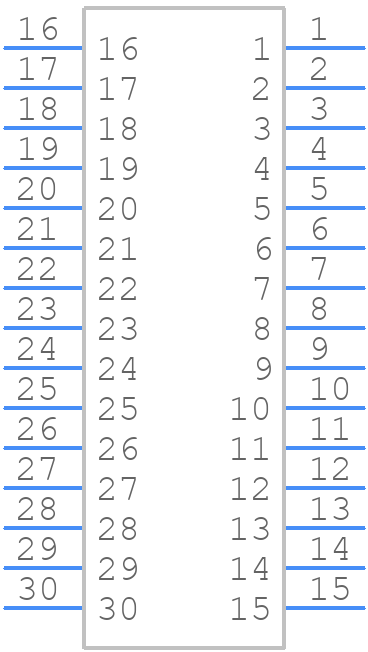

1953842 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

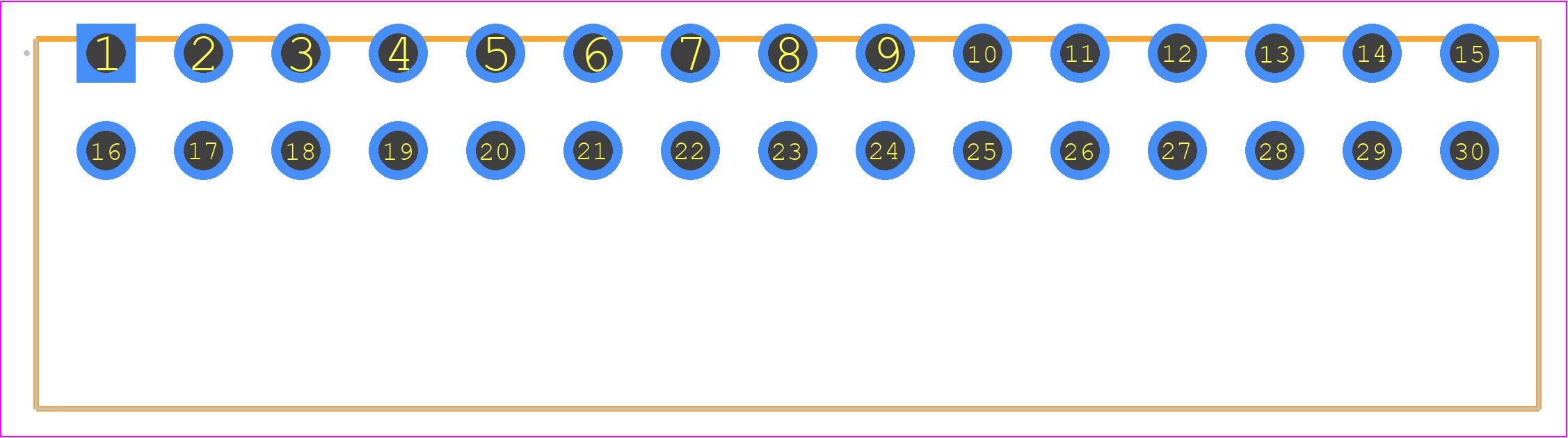

1953842 - Phoenix Contact PCB footprint - Other - Other - 1953842
click to zoom
3D Models
1953842 - Phoenix Contact - 3D model - Other - 1953842
click to zoom

1953842 Details

  • Manufacturer Part Number:

    1953842

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Bulgaria

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7.94

  • Additional Feature:

    LCP, UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    15

  • Rated Current:

    8 A

  • Rated Voltage:

    160 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

1953842 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the Phoenix Contact's general technical guidelines.
  • The 1953842 is not certified for use in hazardous locations. If you need a product for hazardous locations, consider Phoenix Contact's ATEX- or IECEx-certified products.
  • The maximum wire size that can be used with the 1953842 is 2.5 mm² (AWG 14).
  • The 1953842 has a protection rating of IP20, which means it is not suitable for outdoor use or in environments with high humidity. For outdoor use, consider Phoenix Contact's products with a higher IP rating, such as IP67 or IP69K.
  • The 1953842 is not specifically designed for high-vibration environments. If you require a product for high-vibration applications, consider their products with vibration-resistant designs or certifications, such as EN 61373.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1953842 Overview

Use the download button to access the 1953842 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 19538, or try a keyword search, such as Terminals and Terminal Blocks

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
